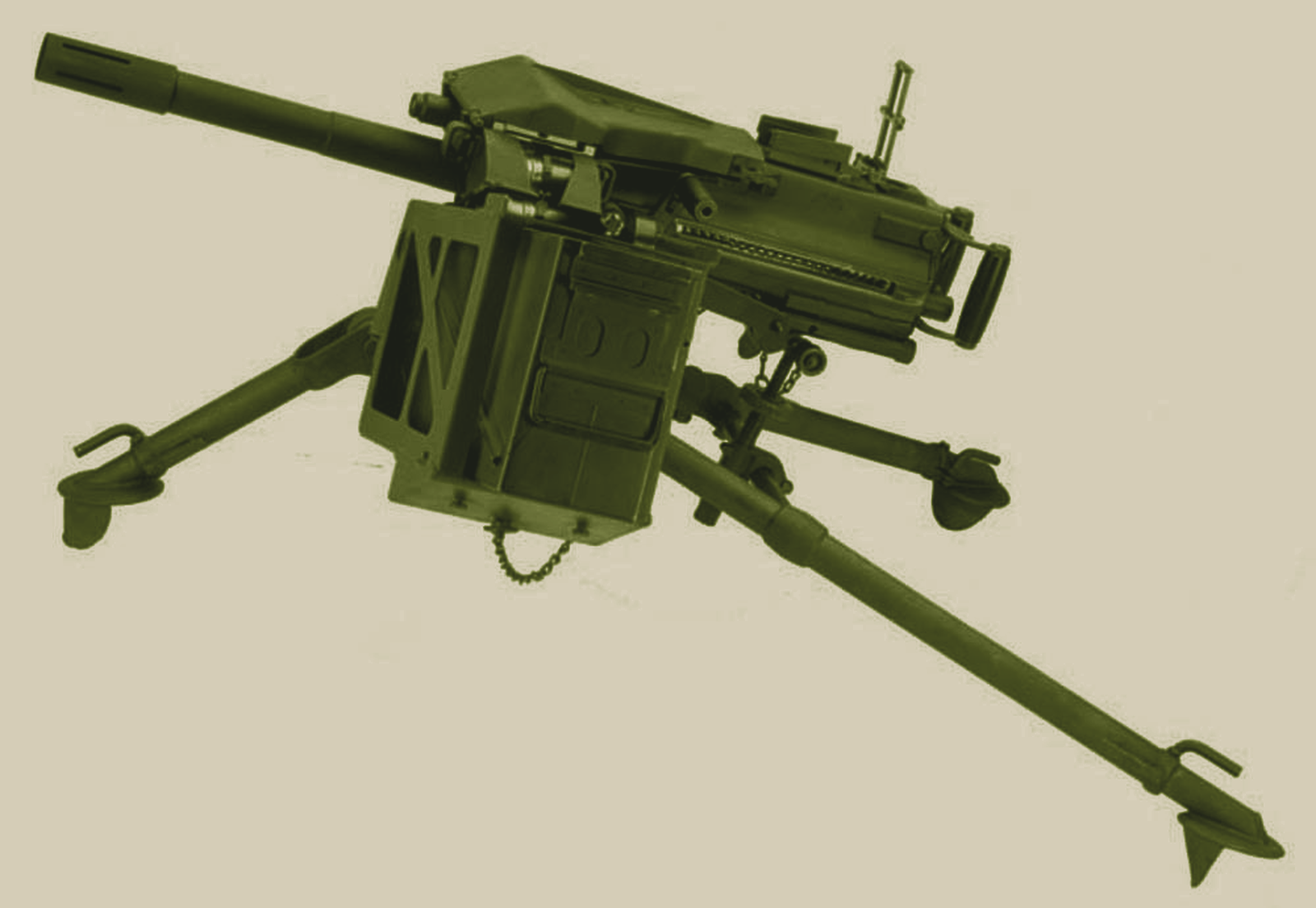

Mk 19

The standard U.S. belt-fed 40 mm automatic grenade launcher — a crew-served, advanced-primer-ignition blowback weapon that delivers high-velocity grenade fire against personnel and light armor out to 2,200 m, and has appeared in every major U.S. deployment since the Gulf War.

Overview

The Mk 19 40 mm Grenade Machine Gun, principally in its MOD 3 variant, is a belt-fed, open-bolt automatic grenade launcher that fires the 40×53 mm high-velocity ammunition family. It provides infantry squads and mounted troops with sustained, high-explosive suppressive fire against personnel, light armored vehicles, and area targets. The weapon is built for mounting on tripods, wheeled and tracked vehicles, naval platforms, and remote-weapon stations, and it has been the U.S. military’s standard heavy automatic grenade launcher since the 1980s.

Development

Development of a fully automatic 40 mm belt-fed grenade launcher began in the late 1960s, building on the manually cranked Mk 18 Mod 0. Early prototype Mk 19 Mod 0 weapons saw limited use in Vietnam, and the design evolved through Mod 1 and Mod 2 configurations. The definitive Mk 19 MOD 3 entered production in the 1980s and became the service-standard weapon, manufactured by Saco Defense (later absorbed into General Dynamics Ordnance and Tactical Systems) and U.S. Ordnance NavWeaps. The MOD 3 incorporated improvements to the bolt, feed mechanism, and reliability that enabled its wide adoption across U.S. ground, vehicle, and naval forces.

Design & capabilities

The Mk 19 uses an advanced-primer-ignition blowback system with an open-bolt, air-cooled design. It chambers the 40×53 mm high-velocity round, which is distinct from the low-velocity 40×46 mm used in under-barrel launchers. US Ordnance lists a cyclic rate of 325-375 rounds per minute, with a practical sustained rate of about 40 rounds per minute. The weapon feeds from metallic disintegrating-link belts, normally in 32- or 48-round lengths, and can be quickly re-loaded.

Effective point-target range is typically cited as 1,500 m, with a maximum range of approximately 2,212 m, according to the U.S. Army’s ODIN database ODIN. The M430 high-explosive dual-purpose (HEDP) round is the principal combat load, capable of penetrating about 50 mm of steel armor while producing antipersonnel fragmentation; training and target-practice rounds are also available. Gun weight without mount is approximately 35.2 kg Weaponsystems.net.

Mounting options include the M3 tripod, a wide array of vehicle pintle and ring mounts (HMMWV, JLTV, Bradley, Stryker), helicopter side-door mounts, and naval pedestals. Many modern installations use a remote-weapon station that allows the gunner to operate the weapon from under armor.

Variants

• Mk 19 Mod 0: First-generation automatic model, field-tested in Vietnam.
• Mk 19 Mod 1 / Mod 2: Intermediate improvements to feeding and reliability.
• Mk 19 MOD 3: The definitive production version, in service since the 1980s, now the standard of all U.S. armed forces.

Combat record / operational use

The Mk 19 MOD 3 has been deployed in every major U.S. conflict since the 1991 Gulf War, often mounted on HMMWVs and other light tactical vehicles. It saw extensive use in Iraq and Afghanistan for convoy protection and fire-support missions, where its high-explosive rounds were effective against dismounted fighters and light vehicles Wikipedia. More recently, the Mk 19 has been supplied to Ukraine as part of Western military assistance, where it is employed on tripods, light vehicles, and improvised mounts for defensive and offensive operations.

Advantages

• Sustained belt-fed automatic 40 mm fire provides area suppression beyond the reach of rifles and medium machine guns.
• The M430 HEDP dual-purpose round is effective against both personnel and light armor.
• Adaptable mount family — tripod, vehicle pintle, remote-weapon station, naval pedestal.
• Proven combat reliability across decades of high-optempo operations.

Drawbacks / limitations

• Heavy at ~35.2 kg (gun alone), requiring a crew of two or three to carry and emplace.
• Low sustained rate of fire (~40 rds/min) compared with medium machine guns; belt changes interrupt fire.
• 40×53 mm ammunition is bulkier and heavier per round than standard small-arms ammunition, limiting the amount a crew can carry.
• Effective against light armor only; cannot defeat main-battle-tank protection.

Counterparts

• AGS-17 (Russia)
• QLZ-87 (China)

Outlook

The Mk 19 remains in production and in frontline service with the U.S. and allied forces. Its role is increasingly paired with lightweight remote-weapon stations and modern fire-control sights, and while new calibers and airburst technologies are being tested for crew-served grenade launchers, the sheer inventory of Mk 19 weapons and the maturity of the 40×53 mm ecosystem ensure it will remain the U.S. heavy automatic grenade launcher well into the 2030s.

Key specifications
