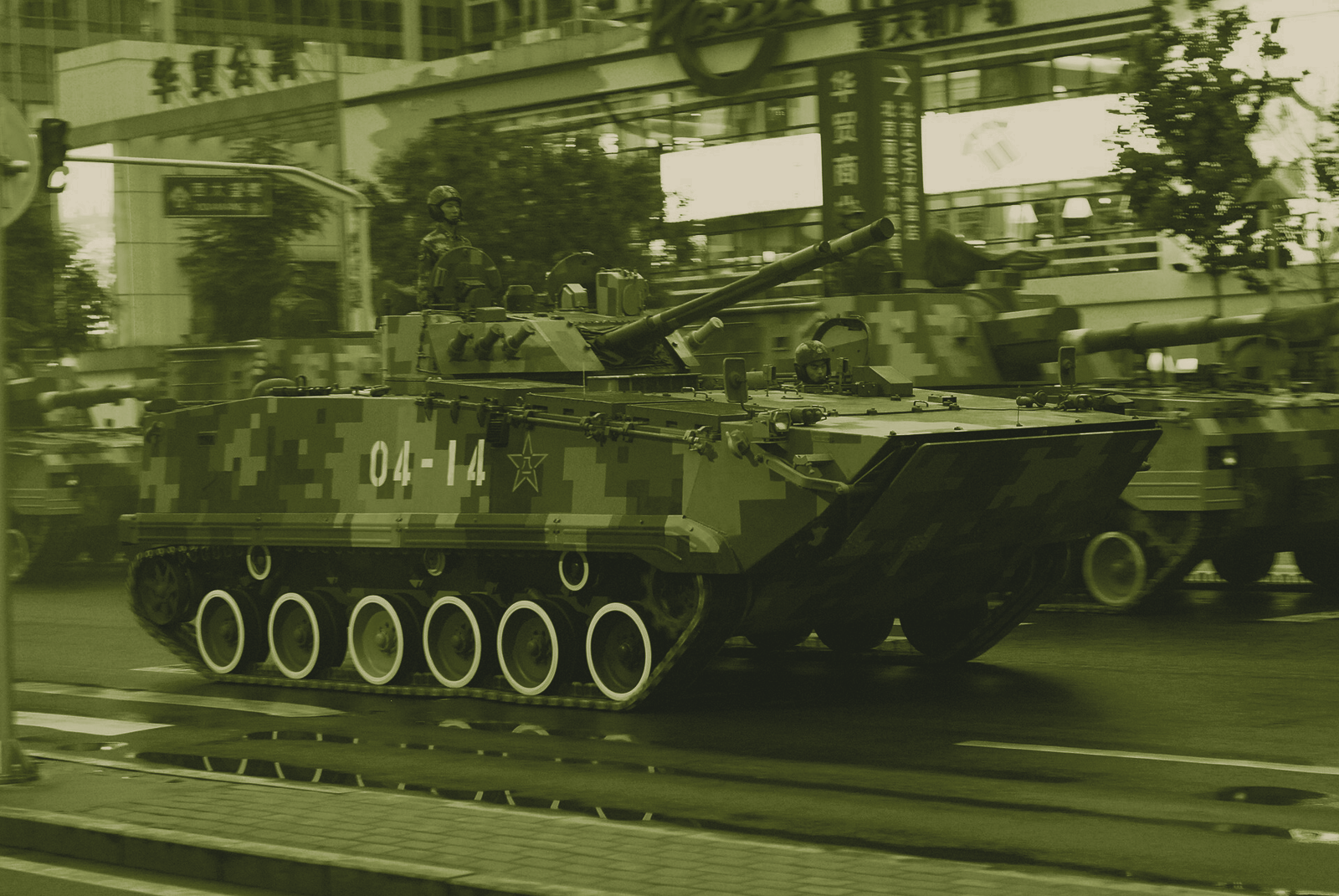

ZBD-04A

China's primary modern tracked infantry fighting vehicle — a BMP-3-influenced design armed with a 100 mm gun-launcher and coaxial 30 mm autocannon, fielded by the PLA Army in its heavy and medium combined-arms brigades with no combat history to date.

Overview

The ZBD-04A, also designated Type 04A within the PLA and known industrially as part of the WZ-502 family, is the principal modern tracked infantry fighting vehicle of the People's Liberation Army Ground Force. Developed by NORINCO, it carries a crew of three and up to seven dismounted infantry, and mounts a distinctive dual-caliber armament package — a 100 mm rifled gun-launcher alongside a 30 mm coaxial autocannon — a philosophy inherited directly from the Russian BMP-3. The ZBD-04A is amphibious via rear water-jets, weighs approximately 24 tonnes, and has been produced in the low thousands across its family, though it has never been exported or tested in combat.

Development

The ZBD-04 lineage begins with the ZBD-97, which entered PLA service in 1999 as China's first modern tracked IFV. Building on that base, NORINCO developed the improved ZBD-04A variant — up-armored, heavier, and better protected — which was fielded through the 2010s and publicly showcased at the October 2019 National Day parade in Beijing. The design deliberately adopted the Soviet-Russian armament concept of pairing a 100 mm low-pressure gun capable of launching both high-explosive shells and tube-launched anti-tank guided missiles with a 30 mm autocannon, aiming to give a single vehicle robust direct-fire support and anti-armor capability without the need for a separate external ATGM mount. This choice reflects a broader PLA preference, visible across the Type 05 amphibious family and the airborne ZBD-03, for the BMP-3's integrated gun-launcher approach over the Western model of a dedicated autocannon plus a separate guided-missile pod.

Design & capabilities

The ZBD-04A mounts its 100 mm rifled gun and coaxial 30 mm autocannon in a two-man turret, with the gun capable of firing both conventional high-explosive fragmentation rounds and laser-guided anti-tank missiles through the barrel, according to Army Recognition. A 7.62 mm coaxial machine gun provides close-in defense, supplemented by banks of smoke grenade dischargers. The hull is constructed of welded aluminum with a steel turret and modular add-on armor, giving the ZBD-04A frontal protection rated against 30 mm cannon fire at approximately 1,000 meters, as detailed by Wikipedia. The vehicle is fully amphibious, propelled in water by two rear-mounted water-jets, and features an NBC protection system. Power comes from a ~670 hp diesel engine delivering a power-to-weight ratio of roughly 18 kW/t, enabling a road speed of approximately 75 km/h and an operational range around 600 km. The ZBD-04A has no confirmed active protection system.

Variants

The ZBD-04 family spans the lighter base ZBD-04 (~20–21.5 tonnes), the up-armored ZBD-04A (~24 tonnes), and the earlier ZBD-97 that served as the developmental stepping stone. NORINCO has also produced command, armored recovery, and ambulance derivatives on the same tracked chassis. A separate but related line, the airborne ZBD-03, uses a similar 30 mm autocannon plus HJ-73C ATGM arrangement in a much lighter (~8 tonne) air-droppable package.

Combat record / operational use

The ZBD-04A has no combat history. It has appeared exclusively in PLA training exercises, field maneuvers, and national parades. In a 2026 brigade-level combined-arms drill, ZBD-04A IFVs operated alongside HQ-17 short-range air-defense systems and PGZ-04A self-propelled anti-aircraft guns under electronic-warfare conditions, as reported by Army Recognition — a demonstration of the PLA's emphasis on integrating mechanized assault formations with organic mobile air-defense coverage. The 2024 U.S. Department of Defense China Military Power report assesses that the PLA Army continues to modernize its heavy and medium combined-arms brigades around platforms like the ZBD-04A, steadily replacing legacy tracked armored personnel carriers such as the Type 63 and Type 89 families. The vehicle's complete absence from any operational theater means its real-world survivability, fire-control performance, and crew protection remain unverified outside of controlled exercise conditions.

Advantages

• Heavy armament package for an IFV: the 100 mm gun-launcher and coaxial 30 mm autocannon provide both direct-fire high-explosive support and anti-armor capability in a single turret, eliminating the need for a separate external ATGM mount.
• Tube-launched ATGM capability simplifies the fire-control chain and keeps the vehicle's silhouette lower than IFVs with exposed missile pods.
• Amphibious capability via rear water-jets permits river-crossing operations without bridging support.
• Modular armor on the ZBD-04A significantly improves protection over the base ZBD-04, with frontal resistance to 30 mm cannon fire at combat ranges.
• Carries a seven-dismount infantry section, matching the BMP-3 and exceeding the six carried by the M2 Bradley.

Drawbacks / limitations

• No combat record whatsoever — all assessments of protection, fire-control accuracy, and crew survivability rest on exercise performance and manufacturer claims, leaving fundamental questions unanswered.
• No confirmed active protection system, rendering the ZBD-04A vulnerable to modern anti-tank guided missiles and top-attack munitions of the kind that have devastated Russian BMP-series equivalents in Ukraine.
• The 100 mm gun-launcher, while versatile, is a lower-velocity weapon than the dedicated high-velocity 25–35 mm autocannons fielded by NATO IFVs, limiting its effectiveness in rapid direct-fire engagements against fast-moving targets.
• Amphibious capability imposes inherent armor-weight compromises compared to non-amphibious IFVs such as the German Puma or the up-armored M2A4 Bradley.
• The vehicle has never been exported, so no foreign operator feedback exists to independently validate PLA performance or reliability claims.

Counterparts

• M2 Bradley (USA)
• BMP-3 (Russia)

Outlook

The ZBD-04A is set to remain the backbone of the PLA's tracked mechanized infantry for at least the next decade. Its lineage from the BMP-3 gives it a proven armament concept, but the vehicle's complete lack of combat exposure means its real-world survivability against the modern threat environment — loitering munitions, top-attack ATGMs, and pervasive ISR — is an open question that the PLA is almost certainly studying against the backdrop of Russian BMP-3 losses in Ukraine. Future upgrades may integrate active protection systems and drone-defense measures, though no confirmed program has been publicly disclosed. Until the ZBD-04A faces operational conditions, it remains a capable-but-unproven platform in a class where combat validation carries immense weight.

Key specifications

Sources

1. Army Technology — ZBD-04A Tracked Infantry Fighting Vehicle. https://www.army-technology.com/projects/zbd-04a-tracked-infantry-fighting-vehicle/
2. Army Recognition — ZBD-04 / ZBD97 Tracked IFV. https://armyrecognition.com/military-products/army/infantry-fighting-vehicles/tracked-vehicles/zbd-04-china-uk
3. Wikipedia — ZBD-04. https://en.wikipedia.org/wiki/ZBD-04
4. Army Recognition — China Deploys ZBD-04A with HQ-17 Air Defense (2026). https://www.armyrecognition.com/news/army-news/2026/china-deploys-zbd-04a-fighting-vehicles-with-hq-17-air-defense-to-shield-mechanized-assault-units
5. U.S. Department of Defense — Military and Security Developments Involving the People's Republic of China 2024. https://media.defense.gov/2024/Dec/18/2003615520/-1/-1/0/MILITARY-AND-SECURITY-DEVELOPMENTS-INVOLVING-THE-PEOPLES-REPUBLIC-OF-CHINA-2024.PDF
