Il-76

The backbone of Russian operational airlift since 1974 — a four-engine heavy-transport that moves troops, outsize cargo and paratroops, and provides the airframe for the A-50 Mainstay AEW&C and the Il-78 Midas tanker.

Overview

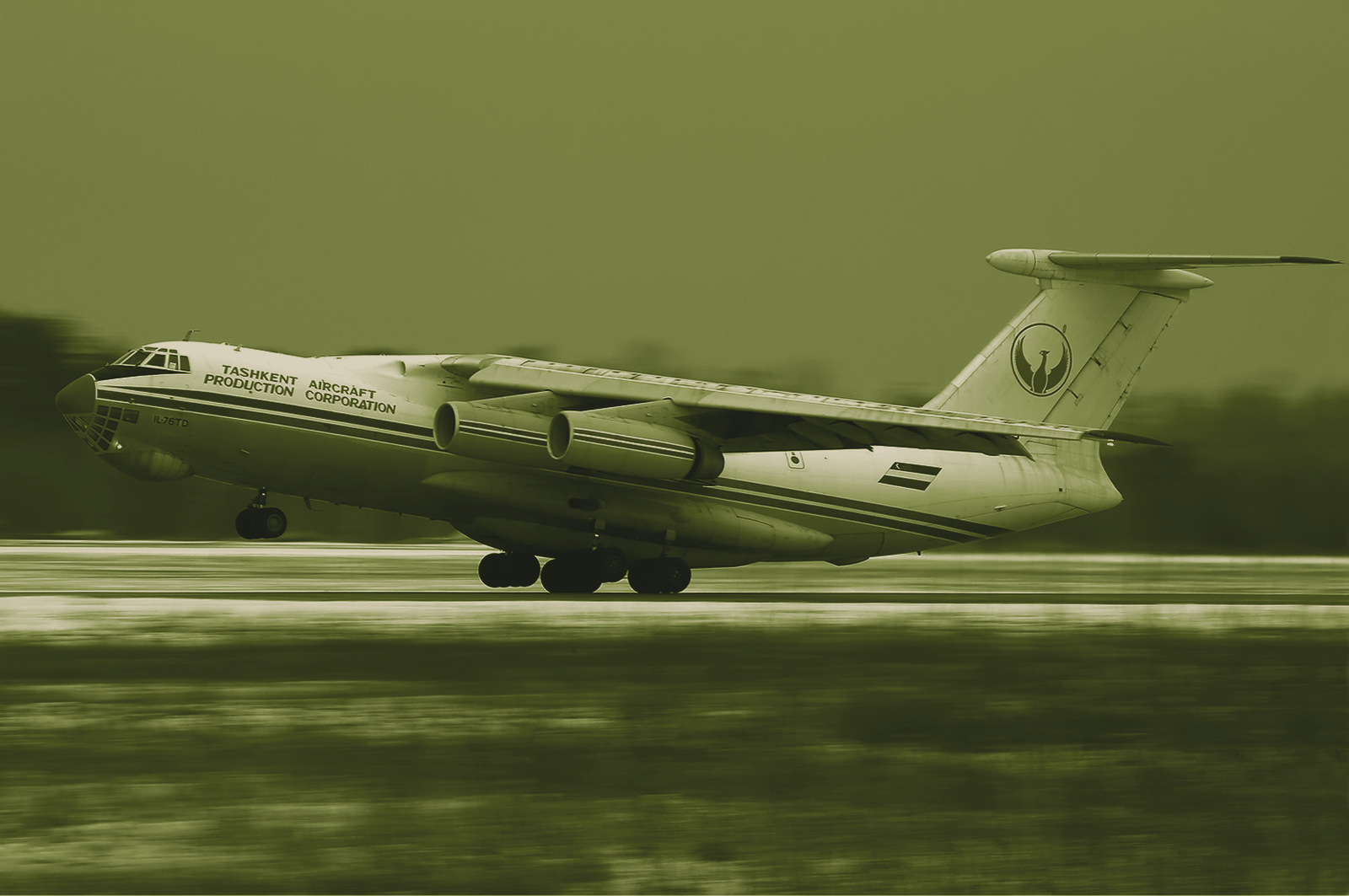

The Ilyushin Il-76 (NATO reporting name Candid) is a long-range, four-engine jet-driven strategic airlifter that entered Soviet service in the mid-1970s and remains the Russian Aerospace Forces’ primary military-transport workhorse. The modernised Il-76MD-90A (also labelled Il-476) keeps the type in production at Aviastar-SP in Ulyanovsk, mating a redesigned wing and digital flight deck with Aviadvigatel PS-90A-76 high-bypass turbofans. Apart from airlift and airdrop, the airframe underpins the Beriev A-50 airborne early-warning aircraft and the Il-78 Midas tanker. More than 950 airframes have been built across all variants, and the aircraft operates with a wide export user base including India, Algeria, China and Belarus.

Development

The Il-76 first flew on 25 March 1971 and entered operational service with the Soviet Air Forces in 1974, as detailed in profiles of its tanker derivative, the Il-78 Airforce Technology. Production originally took place at the Tashkent Aviation Production Association and, from the 2010s, shifted to the modernised Aviastar-SP plant in Ulyanovsk. The main production variant today is the Il-76MD-90A, which received its first contract in 2012 and has been delivered in low-tens numbers despite Russian ambitions for a larger fleet renewal.

Design & capabilities

The Il-76 is a high-wing, T-tail monoplane with four turbofans mounted under the wings and a rear cargo-loading ramp. Dimensions are shared across the family: length ~46.6 m and wingspan 50.5 m, according to the Il-78’s Wikipedia entry, which reflects the identical Il-76 airframe Wikipedia. The baseline Il-76MD lifts roughly 50 tonnes of palletised cargo or 126 paratroops, whereas the strengthened Il-76MD-90A escalates payload to an estimated 52–60 tonnes, propelled by four PS-90A-76 engines that boost fuel efficiency, reduce noise and increase hot-and-high performance, as described in the Il-78 tanker profile Airforce Technology. The cargo hold can accommodate military vehicles up to main-battle-tank size via the rear ramp, and the aircraft can operate from semi-prepared strips. The platform’s ruggedness made it the obvious choice for the A-50 Mainstay radar picket, which mounts the Shmel rotodome atop the same fuselage, underscoring the airframe’s heavy-lift versatility Army Recognition.

Variants

• Il-76M/MD – initial military transport versions with D-30KP engines; dozens remain in Russian and export service.
• Il-76MD-90A (Il-476) – new-build modernised airlifter with PS-90A-76 engines, glass cockpit and reinforced floor; in slow serial production.
• Il-78 Midas – probe-and-drogue aerial-refuelling tanker derivative, retaining a limited cargo capability.
• A-50 / A-50U Mainstay – airborne early-warning and control platform with a dorsal rotodome, built on the Il-76 basis.
• Il-76MF – stretched, D-30KP-2-powered version with higher payload; limited production.

Combat record / operational use

The Il-76 family has been the backbone of Russian operational-level resupply and rapid-reaction airlift for decades. Derivatives such as the Il-78 tanker were deployed to Syria to support Russian strike operations, demonstrating the platform’s ability to sustain expeditionary campaigns Airforce Technology. In the Russia-Ukraine war the type has been used extensively to move men and matériel to forward areas; one Il-76 was reported lost over the Belgorod region in January 2024, although circumstances remain disputed. Export operators have employed the aircraft in numerous UN-mandated and regional operations, while the A-50 version’s high-profile shoot-downs in 2024 highlighted the airframe’s vulnerability when operating in contested airspace.

Advantages

• Proven heavy-lift capability with an ability to carry outsized cargo and combat vehicles.
• Can operate from austere, semi-prepared airfields, enhancing strategic responsiveness.
• Re-engined MD-90A version improves fuel economy, payload-range and compliance with modern noise standards.
• Common airframe for A-50 AWACS and Il-78 tanker, simplifying logistics and training.
• Large global user base provides economies of scale in spare parts and sustainment.

Drawbacks / limitations

• Slow production rate for the modernised MD-90A limits fleet modernisation in Russia.
• Reliance on older D-30KP powerplants in legacy airframes leads to lower efficiency and higher maintenance.
• No advanced self-protection suite; the airframe is a large, non-stealthy target in high-threat environments.
• Export variants often lack the latest avionics and engines, creating split fleet support challenges.
• Unit cost for new-build aircraft remains undisclosed, complicating competitiveness against Western airlifters.

Counterparts

• C-17 Globemaster III (USA)
• Y-20 (China)

Outlook

The Il-76 is set to remain Russia’s primary military airlifter into the 2030s, but the disconnect between stated fleet ambitions and the actually delivered MD-90A numbers will continue to strain force structure. The type will also underpin the next-generation A-100 Premier AEW&C, yet at present production rates a wholesale renewal of the transport fleet is unlikely. Export interest persists among legacy operators, though Western sanctions complicate sales.

Key specifications

Sources

1. Airforce Technology — “IL-78 Midas Air-to-Air Refuelling / Transport Aircraft.” https://www.airforce-technology.com/projects/ilyushin-il-78/
2. Wikipedia — “Ilyushin Il-78.” https://en.wikipedia.org/wiki/Ilyushin_Il-78
3. Army Recognition — “A-50 Beriev Mainstay.” https://www.armyrecognition.com/military-products/air/other/command-and-control/a-50-beriev-mainstay
