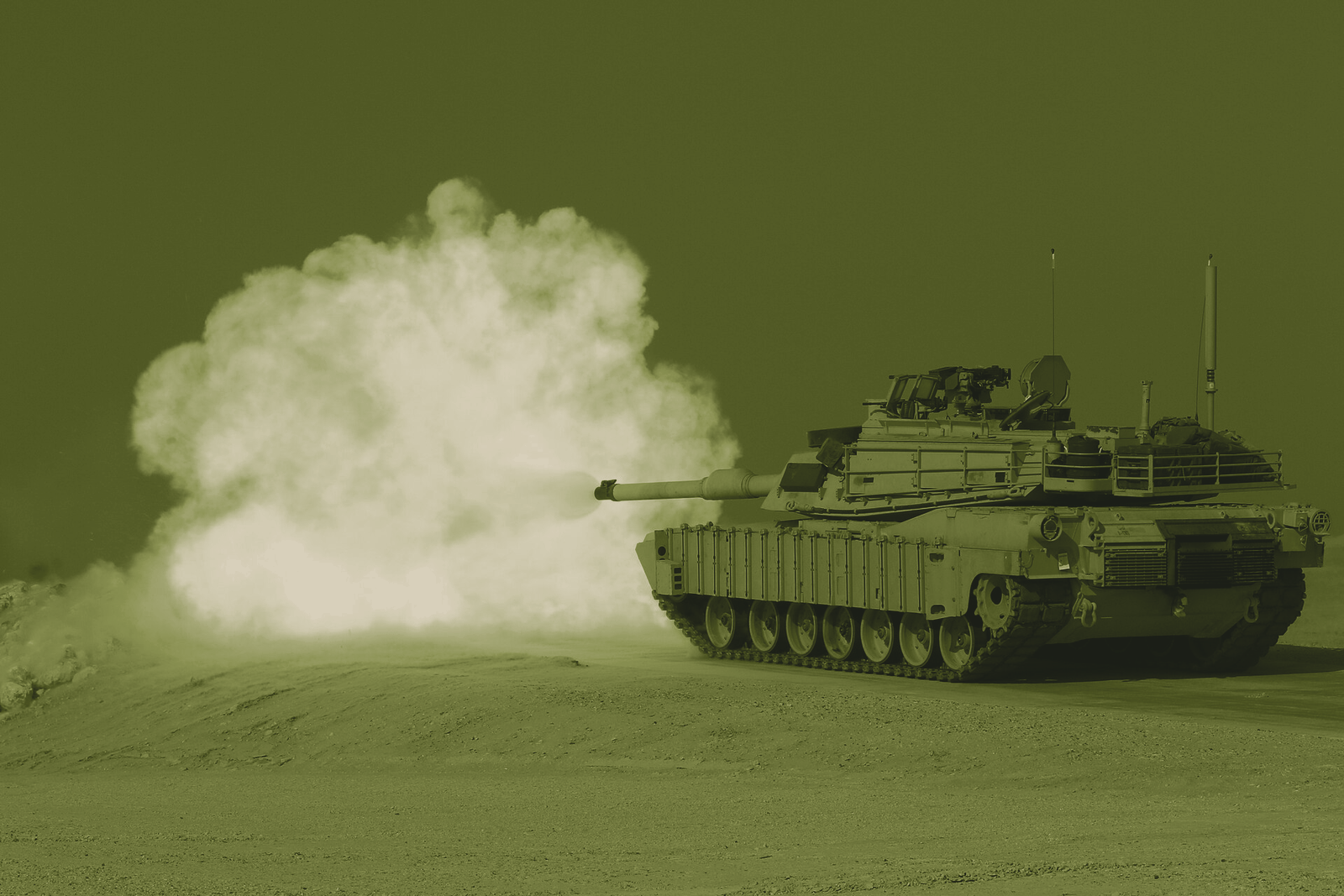

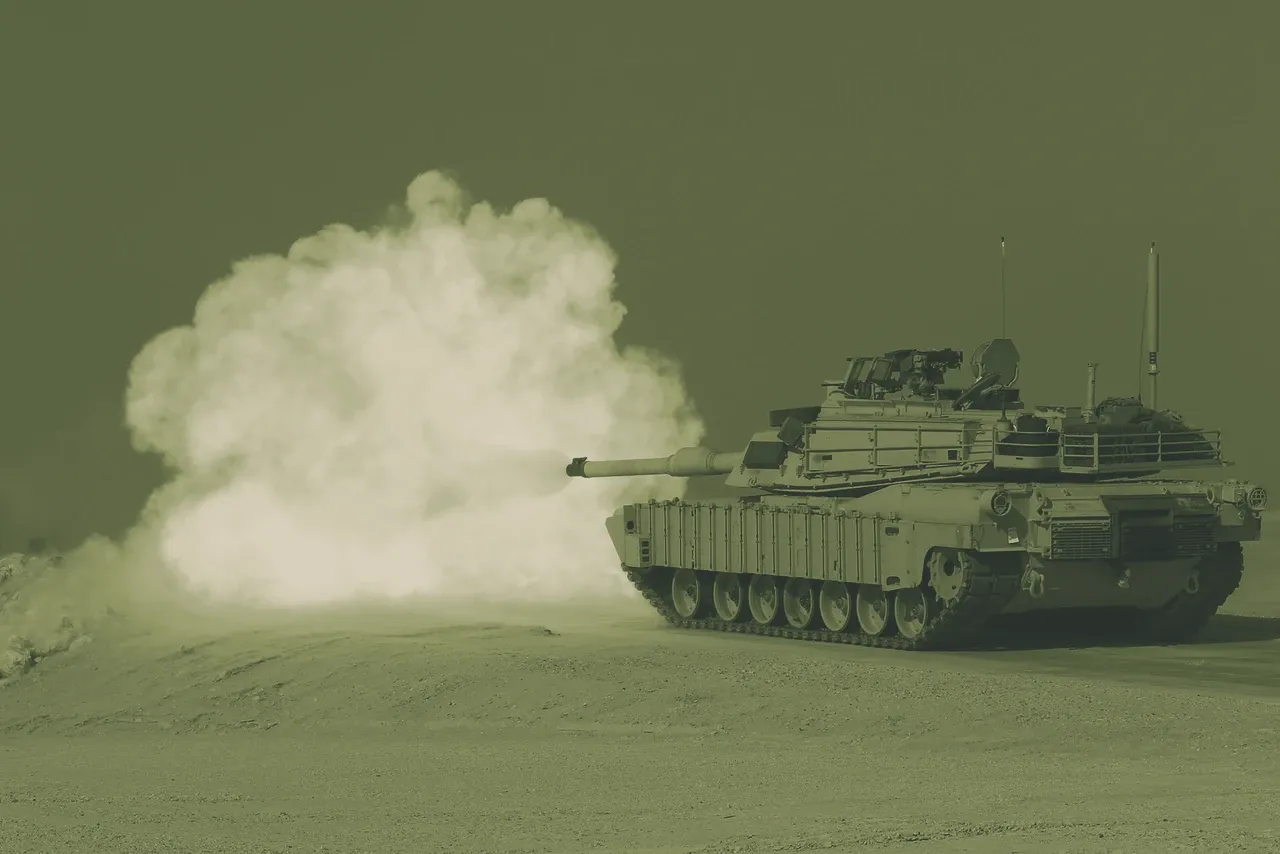

M1A2 Abrams

The United States' main battle tank — a heavily armoured, four-crew, 120 mm gas-turbine heavy tank whose latest SEPv3 standard adds the Trophy active-protection system, and which was supplied to Ukraine in 2023.

Overview

The M1A2 Abrams is the current production and service standard of the United States' M1 main battle tank, built by General Dynamics Land Systems and named after General Creighton Abrams. The headline variant, the M1A2 SEPv3 (System Enhancement Package version 3, briefly designated M1A2C), pairs the Abrams' signature 1,500 hp gas turbine and 120 mm smoothbore gun with a heavy composite-and-depleted-uranium armour array, a digital fire-control suite and — on fielded brigades — the Trophy hard-kill active-protection system. It is the armoured backbone of the US Army's heavy combined-arms brigades, the most widely exported Western heavy tank after the Leopard 2, and since 2023 a combatant in Ukraine.

Development

The M1 was developed by Chrysler Defense (the line later passed to General Dynamics Land Systems) and entered US Army service in 1980; the 120 mm-gunned M1A1 followed in 1985 and the digital M1A2 in 1992, according to General Dynamics Land Systems and Army Technology. The current SEPv3 standard delivered its first vehicle in October 2017 and reached its first unit in FY2020. A planned SEPv4 was cancelled in 2023 in favour of a more ambitious next-generation rebuild, the M1E3, as the Army concluded the design had reached the practical limits of added weight, per The War Zone and the Congressional Research Service.

Design & capabilities

The Abrams is built around the 120 mm M256 L/44 smoothbore — a licensed development of the Rheinmetall Rh-120 — firing APFSDS, HEAT and multipurpose rounds with a human loader, the feature that keeps the crew at four (commander, gunner, loader, driver). Its defining powerplant is the Honeywell AGT1500 gas turbine rated at 1,500 hp, which gives strong acceleration at the cost of heavy fuel consumption. Protection comes from a composite Burlington/Chobham-type array reinforced with a depleted-uranium mesh on US-service vehicles (export tanks use non-DU armour), and the SEPv3 standardises the Trophy hard-kill active-protection system, which European Security & Defence reports was fitted across four armoured brigade combat teams (336 tanks) by the end of 2020. The SEPv3 also adds an auxiliary power unit, improved networking and ammunition data links.

Variants

• M1 / M1A1 — the 105 mm original (1980) and the 120 mm M1A1 (1985).
• M1A2 / SEPv2 / SEPv3 — the digital M1A2 (1992) and its enhancement packages; the SEPv3 is the current build standard described here.
• M1E3 — the cancelled SEPv4's replacement, a next-generation rebuild intended to shed weight; in development.
• Export configurations — M1A2S (Saudi Arabia), M1A2T (Taiwan, on order), M1A1FEP and M1A2 SEPv3 (Poland), SEPv3 (Australia), and co-produced M1A1s in Egypt.

Combat record / operational use

The Abrams was decisive in the 1991 Gulf War and the 2003 invasion of Iraq, and saw extensive counter-insurgency use in Iraq and Afghanistan. The United States donated 31 M1A1 tanks to Ukraine in 2023–24; they were committed to front-line use, sustained documented combat losses, and were at times pulled back from the most exposed positions as Ukrainian crews adapted to the pervasive drone threat — a pattern that mirrors the attrition seen against Russia's T-90M Proryv. Abrams variants also serve in quantity with Egypt, Saudi Arabia, Kuwait and Iraq.

Advantages

• Highly accurate 120 mm gun paired with a mature fire-control system and excellent thermal optics.
• Heavy composite-plus-depleted-uranium frontal protection (on US vehicles).
• Trophy hard-kill APS fielded on SEPv3 brigades, defeating many ATGM and RPG threats.
• High power-to-weight from the 1,500 hp turbine gives strong tactical mobility.
• Deeply networked into US digital fires and command systems.

Drawbacks / limitations

• Among the heaviest MBTs in service (~67 t), imposing a large transport, bridging and logistics burden.
• The gas turbine's high fuel consumption strains the supply chain.
• Top and rear arcs remain vulnerable to drone-delivered and top-attack munitions, as Ukraine showed.
• The design is at the upper limit of added weight, the explicit rationale for the cancelled SEPv4 and the pivot to the M1E3.
• High unit and through-life cost.

Counterparts

• T-90M Proryv (Russia) — the lighter, three-crew autoloader benchmark, also fighting in Ukraine.
• Leopard 2 (Europe) — the other Western heavyweight and the coalition MBT standard.
• Type 99A (China) — the PLA's top-tier MBT, comparable in weight but with no combat record.

Outlook

The M1A2 SEPv3 remains in service and low-rate production while the US Army turns to the next-generation M1E3 to deliver a lighter, more survivable Abrams shaped by the lessons of Ukraine — where cheap drones and top-attack munitions have eroded the value of frontal armour. The fleet's near-term trajectory is upgrade and sustainment of existing hulls rather than large new builds, with export and donated Abrams continuing to spread the type across NATO and partner armies.

Key specifications

Sources

1. General Dynamics Land Systems — Abrams main battle tank. https://www.gdls.com/abrams/
2. Army Technology — "Abrams M1A2 SEPv3 Main Battle Tank, US." https://www.army-technology.com/projects/abrams-m1a2-sepv3-main-battle-tank/
3. The War Zone — "Army Axes M1A2 SEPv4 Abrams, Bets Big On Next-Gen 'M1E3'." https://www.twz.com/army-axes-m1a2-sepv4-abrams-bets-big-on-next-gen-m1e3
4. Congressional Research Service — "The Army's M-1E3 Abrams Tank Modernization Program." https://www.congress.gov/crs-product/IF12495
5. European Security & Defence — "TROPHY APS For M1 ABRAMS Delivered." https://euro-sd.com/2021/01/news/land/20469/trophy-aps-m1-abrams/
6. Army Technology — "M1A1/2 Abrams Main Battle Tank." https://www.army-technology.com/projects/m1a1-2-abrams-main-battle-tank/
7. Australian Army — "M1A2 Abrams tank." https://www.army.gov.au/equipment/vehicles-and-surveillance/m1a2-abrams-tank
