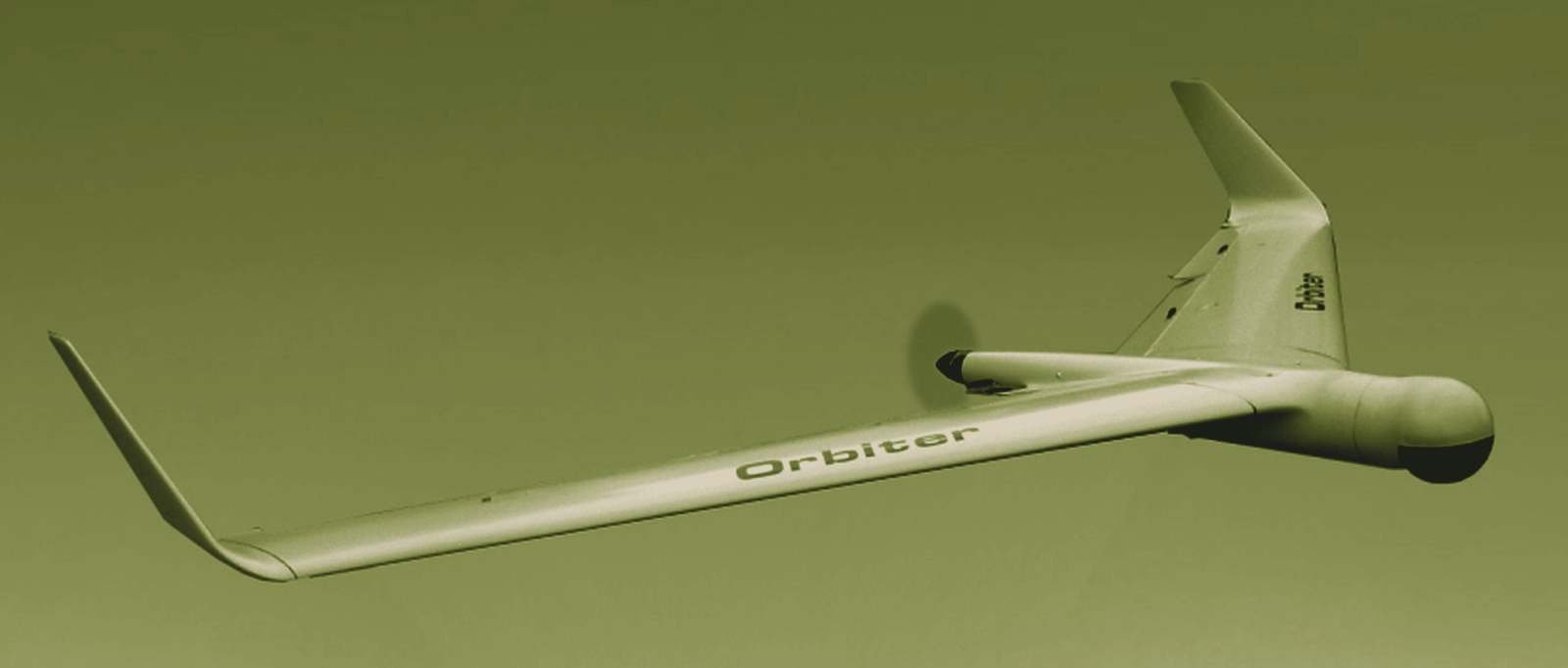

Orbiter 4

A Group 3 tactical UAS from Israel's Aeronautics Ltd. that packs Group 4 ISR sensor capability — dual-station 12 kg payload, VTOL option, 24-hour endurance — into a man-portable footprint; in Israeli service as the Nitzoz and exported to Singapore, Greece and undisclosed customers.

Overview

The Aeronautics Orbiter 4, designated Nitzoz ("Spark") in Israeli Air Force service, is a fixed-wing, runway-independent tactical unmanned aircraft system that bridges the payload and persistence of a Group 4 MALE UAS with the logistical footprint of a Group 2 platform. A single three-person crew can launch, operate, and recover the 50 kg airframe from land or ship, field-switchable between pneumatic catapult and a VTOL configuration without returning to depot. Its dual-station payload bay accommodates electro-optical/infrared designators, synthetic-aperture radar, maritime patrol radar, and SIGINT packages simultaneously, making the system a multi-mission ISR node for ground, naval, and special-operations forces.

Development

Aeronautics Ltd. introduced the Orbiter mini-UAS family in the early 2000s, and the top-end Orbiter 4 variant was first revealed at Defexpo India in February 2020 and IDEX 2021, according to Defense Update. Rafael Advanced Defense Systems had already acquired Aeronautics in September 2019, consolidating the airframe with its Microlite EO/IR gimbal and other payloads in a deal valued at NIS 850 million (Defense News). The Israeli Air Force formally received the system in September 2022 under the classified “Storm Clouds” program, as Defense Update reported, while export orders followed rapidly: Singapore acquired an undisclosed quantity in March 2022 (FlightGlobal), and the Hellenic Army received “large numbers” in April 2023, paired with SPIKE-NLOS missiles. In June 2025 the manufacturer announced contracts exceeding $50 million for Orbiter 4 variants from multiple undisclosed customers (EDR Magazine). Corporate ownership remains in flux: in February 2026 US firm Ondas Holdings sought to acquire Aeronautics from Rafael, a move that requires Israeli Ministry of Defense approval (Calcalistech).

Design & capabilities

The Orbiter 4’s pusher-propeller airframe, detailed on the manufacturer’s site, carries a 12 kg payload across two stations and can operate multiple sensor types concurrently — EO/IR with laser designation, SAR, maritime patrol radar, and SIGINT packages — delivering surveillance and targeting data well beyond the horizon of typical Group 2/3 UAS. Its multi-fuel SI engine provides up to 24 hours of endurance, though some marketing materials claim over 30 hours for extended-payload configurations (Air Force Technology). The system features six autonomous flight modes, automatic take-off and recovery, and a field-switchable VTOL capability that allows shipboard operation without flight-deck modification. A compact foldable net or parachute/airbag enables recovery in constrained spaces, giving a three-operator crew a persistent ISTAR capability that fits a standard vehicle.

Variants

The Orbiter family spans several classes: the Orbiter 1K “Kingfisher” (loitering munition with a 2 kg warhead), the smaller Orbiter 2 / 2B (∼6 kg payload), the intermediate Orbiter 3 / 3b (∼6-8 kg payload, widely exported), and the current top-of-line Orbiter 4. In 2025 Aeronautics announced the AtlasPRO, an “Unmanned Hover Plane” concept that extends the VTOL capability into a new category.

Combat record / operational use

The Orbiter 1K loitering munition saw combat during the 2020 Nagorno-Karabakh conflict, and a controversial 2017 demonstration in which Aeronautics personnel allegedly carried out a live strike on Armenian forces led to Israeli export-control charges, a reputational incident documented by Wikipedia. The Orbiter 4 itself entered combat in November 2023, when the IAF’s 144th Squadron deployed the Nitzoz over Gaza to provide persistent ISR, targeting support, and tunnel-network mapping for Israeli ground forces. Israeli sources described the system as “a significant asset” in those operations (Defence Industry Europe). Iran claimed in May 2026 to have intercepted an Orbiter surveillance drone over Hormozgan province; Israel did not confirm the incident. Singapore and Greece have not publicly detailed operational employment of their Orbiter 4 fleets.

Advantages

• 12 kg dual-station payload delivers Group 4 ISTAR sensor density in a 50 kg, man-portable airframe.
• VTOL and catapult-launch configurations are field-switchable, enabling rapid ship-to-shore transitions without depot-level rework.
• Rafael Microlite EO/IR with onboard image processing and laser designation closes the sensor-to-shooter loop for ground-guided munitions like SPIKE-NLOS.
• 24-hour endurance on a multi-fuel engine covers persistent ISR timelines at a fraction of the cost of a manned aircraft or MALE UAS.
• Validated in active combat (Gaza) and by a growing list of NATO/Asia-Pacific operators, providing a high-credibility procurement baseline.

Drawbacks / limitations

• Maximum speed of ~129.6 km/h limits survivability in contested airspace; MANPADS and small-arms fire are credible threats outside permissive environments.
• Operational radius of ~150 km under line-of-sight datalink is substantially shorter than Group 4 MALE UAS; SATCOM extension adds cost and spectrum demands.
• No organic strike capability — the Orbiter 4 is an ISR platform that depends on external shooters, lengthening the sensor-to-shooter timeline.
• Aeronautics’ 2017 export-control scandal and the unresolved Ondas acquisition bid inject procurement uncertainty for long-term customers.

Counterparts

• V-BAT (NATO)
• Orlan-10 (Russia)

Outlook

The Orbiter 4 has established a durable niche by putting Group 4 ISR capability into a Group 2 logistical footprint, and the $50M-plus 2025 contract tranche demonstrates sustained, if quiet, demand from undisclosed buyers. The corporate trajectory is the principal variable: a successful Ondas acquisition could accelerate U.S. market access while complicating Israeli security clearances for sensitive programs like “Storm Clouds.” The system’s export viability will depend on whether customers perceive the ownership flux as a routine corporate transaction or a risk to the technology safeguards that underpin Israeli-origin UAS.

Key specifications

Sources

1. Defence Update — “Orbiter 4 (NITZOZ) UAS to Enter IAF Service.” https://defense-update.com/20220921_orbiter-4-nitzoz-uas-to-enter-iaf-service.html
2. Aeronautics — Orbiter 4 product page. https://aeronautics-sys.com/systems/orbiter-4/
3. Air Force Technology — “Orbiter 4 Small Tactical UAS, Israel.” https://www.airforce-technology.com/projects/orbiter-4-small-tactical-uas-israel/
4. Defence Industry Europe — “Israeli Air Force deploys Spark UAV in operations against Hamas in Gaza.” https://defence-industry.eu/israeli-air-force-deploys-spark-uav-in-operations-against-hamas-in-gaza/
5. EDR Magazine — “Aeronautics Ltd. secures contracts in excess of $50M for versions of the Orbiter 4 UAS.” https://www.edrmagazine.eu/aeronautics-ltd-secures-contracts-in-excess-of-50m-for-versions-of-the-orbiter-4-unmanned-aerial-system
6. FlightGlobal — “Singapore obtains Orbiter 4 tactical UAV.” https://www.flightglobal.com/military-uavs/singapore-obtains-orbiter-4-tactical-uav/147768.article
7. Wikipedia — “Aeronautics Defense Orbiter.” https://en.wikipedia.org/wiki/Aeronautics_Defense_Orbiter
8. Defense News — “Rafael acquires drone-focused firm in $240M deal.” https://www.defensenews.com/industry/2019/09/05/rafael-acquires-drone-focused-firm-is-240m-deal/
9. Calcalistech — “Ondas seeks to acquire Rafael's drone maker Aeronautics.” https://www.calcalistech.com/ctechnews/article/3qa102g1g
10. Defence Update — “Orbiter – a Big Family of Small UAS.” https://defense-update.com/20210712_orbiter-a-big-family-of-small-uas.html
