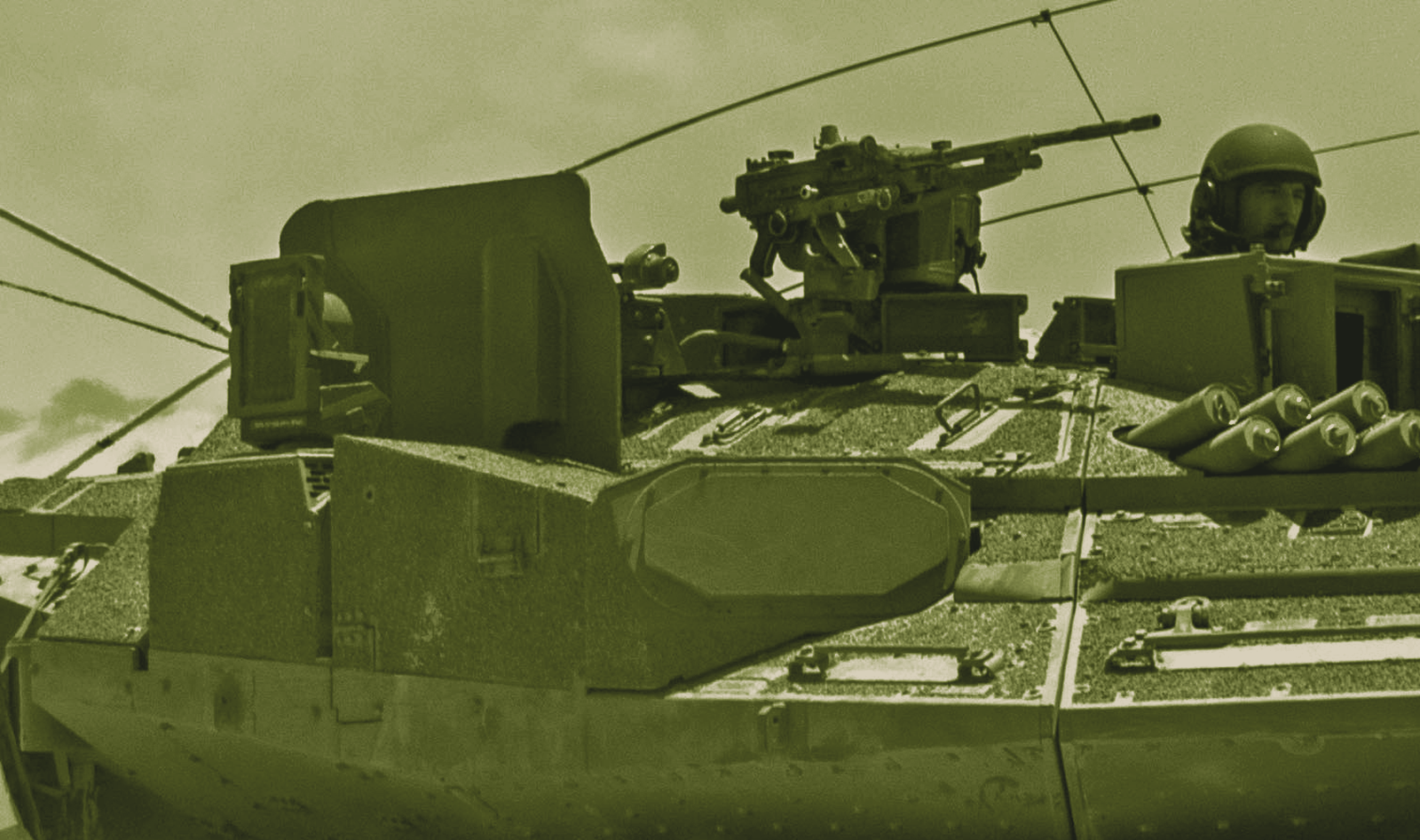

Trophy APS

Israel’s battle-proven hard-kill active protection system — the first to shoot down an anti-tank missile in combat, now protecting armoured fleets from Gaza to Europe.

Overview

Trophy, known in the Israel Defense Forces as Meil Ruach (Windbreaker) and marketed abroad as Trophy HV, MV, VPS and LV, is a hard-kill active protection system (APS) developed by Rafael Advanced Defense Systems with Elta radar technology. The system detects, tracks and defeats incoming chemical-energy anti-armour threats — RPGs, recoilless-rifle projectiles and anti-tank guided missiles — at a safe stand-off distance, while simultaneously locating the shooter and feeding the firing point into the vehicle’s battle-management system. Combat-proven since 2011, Trophy is fielded on the Merkava family, adapted to the M1 Abrams and Leopard 2, and selected for the British Challenger 3, making it the de facto Western APS standard.

Development

Rafael and Elta began work on a hard-kill APS in the 1990s, but the programme gained real urgency after Hizbullah’s 2006 ambushes in Lebanon, in which dozens of Merkava tanks were damaged by Kornet and RPG-29 hits. According to the Leonardo DRS product page, the project moved rapidly from emergency requirement to operational hardware, and serial IDF fielding started in August 2009 on Merkava Mk 4M tanks. The system made history on 1 March 2011 when a Merkava near the Gaza border intercepted an incoming missile — the first ever combat kill by an active protection system, as recorded by Wikipedia. Over the following decade the architecture was scaled-down for lighter vehicles, and through the EuroTrophy joint venture (Rafael, GDELS, KNDS) and a US-production line with Leonardo DRS, Trophy became available to NATO customers.

Design & capabilities

Trophy’s sensor suite consists of four Elta EL/M-2133 flat-panel AESA radars mounted around the vehicle, giving continuous 360° azimuth coverage plus extensive elevation coverage — though not a full overhead hemisphere. When a threat is detected and classified, the system’s fire-control processor chooses which of the two trainable launchers to use and fires a countermeasure that projects a cloud of Multiple Explosively Formed Penetrators (MEFP) to disrupt the warhead before impact, as described in the Rafael Trophy brochure. The engagement is fully automatic, with no crew cueing needed. Simultaneously, the radar back-tracks the incoming projectile to pin-point the firing position, which is then displayed on the crew’s digital map, enabling immediate return fire. The entire process from detection to interception takes a fraction of a second, and the MEFP mechanism is designed to minimise collateral damage and risk to dismounted infantry compared with a blast-type counter-response.

Variants

The system is built in weight classes to suit different platforms: - Trophy HV (~820 kg) — for main battle tanks and heavy AFVs. - Trophy MV / VPS (~480 kg) — a repackaged medium configuration for lighter tracked and wheeled vehicles; the VPS variant is marketed in the US by Leonardo DRS. - Trophy LV (~200 kg) — for light tactical vehicles. - 2024–25 upgrade — a software and hardware modification that gives the system a counter-drone capability; Rafael has demonstrated it intercepting a jet-powered fixed-wing drone in a near-vertical dive, according to Calibre Defence. - Future interceptor-drone add-on — announced at ADEX in October 2025, the architecture will integrate a cheap interceptor drone to engage top-attack threats; IDF deliveries are planned from 2026 (National Defense Magazine).

Combat record / operational use

Trophy entered IDF service on Merkava Mk 4M tanks in 2009 and achieved the first ever combat APS interception on 1 March 2011, documented by Wikipedia. During Operation Protective Edge in 2014, roughly 100 Trophy-equipped tanks recorded more than a dozen interceptions of 9M133 Kornet missiles and RPG-29 rounds; the IDF reported no tanks damaged, and the shooter-location function enabled at least one immediate counter-kill of a Hamas anti-tank team, noted by Rafael. In the Gaza war that began in October 2023, Trophy ran at scale: Hamas-published combat videos showed MEFP detonations meters from moving Merkavas in Khan Younis, while a Rafael representative stated that “hundreds of systems” fought in Gaza and Lebanon and dealt with short-range RPGs and long-range ATGMs “very well,” with wartime software updates pushed to the fleet, as reported by The War Zone. The same conflicts, however, exposed seams: Hamas quadcopter droppers exploited the overhead gap to damage Trophy-protected tanks, and Hezbollah FPV-drone footage from 2024–26 showed strikes with no intercept attempt — a fact highlighted by Defence Express. Abroad, the US Army fielded Trophy on four brigade sets of M1 Abrams (~400 systems delivered by January 2021) under a $193 million contract, while Germany received its first Trophy-equipped Leopard 2A7A1 in late 2024 and the UK signed for Challenger 3 in 2023.

Advantages

• Long combat pedigree — first operational hard-kill APS, first combat interception in 2011, and thousands of intercepts claimed since, with a manufacturer-stated >90 % success rate.
• Shooter-location reporting provides a unique tactical advantage, feeding the firing point directly to the crew’s battle-management system and enabling immediate counter-fire.
• Platform-agnostic architecture: fielded on Merkava Mk 3/4, Namer, Eitan, M1 Abrams, Leopard 2A7A1/2A8, and selected for Challenger 3; also integrated or tested on Stryker, LAV III and Bradley.
• Kinetic MEFP interception at stand-off reduces collateral damage and the risk to nearby dismounted soldiers compared with blast-type systems (manufacturer-defined troop-safety zones).
• Exportable and produced via licensed partnerships (Leonardo DRS in the US, EuroTrophy in Europe), with a large and growing installed base.

Drawbacks / limitations

• Coverage is 360° in azimuth but not fully overhead; combat experience has shown that top-attack threats (quadcopter-dropped munitions, diving FPVs) can exploit this gap, forcing crews to rely on cope cages rather than Trophy alone.
• Hezbollah FPV strikes on Trophy-equipped Merkavas have been recorded with no visible intercept attempt, throwing doubt on the 2024 drone-capability claims; the counter-drone performance lags behind that of the competing Iron Fist system.
• The system cannot defeat kinetic-energy penetrators (APFSDS); it is not designed for that threat set.
• Very-close-range saturation attacks remain dangerous: Hamas distributed instructions to fire RPGs from under 50 m in rapid succession to overwhelm the system.
• MEFP discharge poses a fratricide risk to infantry operating close to the vehicle in urban terrain, limiting when crews can keep the system armed.
• Integration weight is not trivial — the ~820 kg HV suite adds about 3.2 tonnes to an Abrams including mounts, and a 2013-era estimate put Trophy at roughly 30 % of the vehicle cost on a Merkava 4M.

Counterparts

• Merkava Mk 4 (Israel)
• M1A2 Abrams (USA)

Outlook

Trophy’s installed base continues to expand as the Leopard 2A8 programme and Challenger 3 orders lock in the system as the default NATO hard-kill APS. The decisive test, however, is the FPV-drone era: Rafael’s answer is the software upgrade and the interceptor-drone add-on due from 2026, while competitor Iron Fist has already demonstrated anti-FPV kills. Rafael itself frames Trophy as just one layer in a “golden triangle” that must also include directed-energy weapons and electronic warfare, conceding that no single APS can solve the top-attack problem alone.

Key specifications
