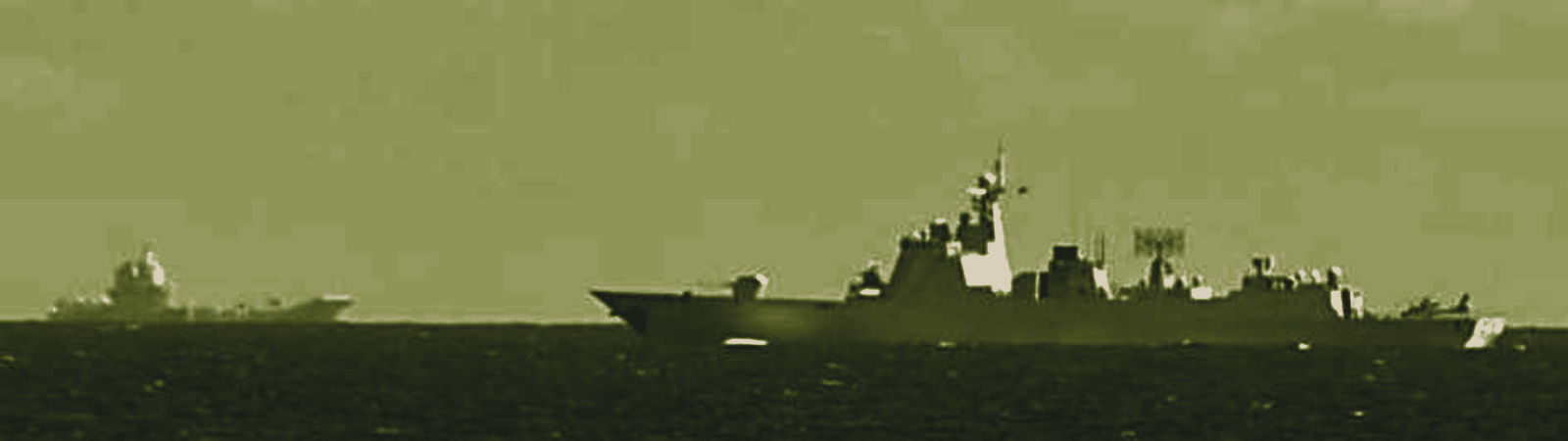

Type 052D

The People’s Liberation Army Navy’s most numerous modern destroyer — a multirole air-defence combatant with 64 universal VLS cells, an AESA radar, and over 35 hulls in service, forming the backbone of China’s carrier escort and blue-water surface force.

Overview

The Type 052D (Western reporting name Luyang III, also called the Kunming-class) is a guided-missile destroyer that serves as the numerically dominant surface combatant of the People’s Liberation Army Navy (PLAN). As of early 2026, roughly 35 ships are in service — a mix of the baseline 052D and the stretched-flight-deck 052DL — making it the most-built modern destroyer class in Asia. The class provides area-air-defence for carrier strike groups, long-range anti-ship strike, and land-attack capability from a single hull, and it is the ship that transformed the PLAN into a blue-water fleet.

Development

The Type 052D emerged as a direct evolution of the earlier Type 052C (Luyang II), China’s first indigenously built area-air-defence destroyer. While the 052C fielded a non-universal cold-launch revolver VLS for HHQ-9 missiles, the 052D introduced a universal hot-launch VLS compatible with anti-air, anti-ship, and land-attack missiles — a generational leap in firepower flexibility. The lead ship, Kunming (172), was commissioned in March 2014 after construction at the Jiangnan Shipyard. Production split between Jiangnan (Shanghai) and Dalian Shipbuilding has continued at a pace that regularly delivers two or more hulls per year, a rate that has allowed the PLAN to overtake all other navies except the United States in the number of modern blue-water destroyers (Naval Technology). A stretched variant, the Type 052DL, lengthened the flight deck and increased helicopter hangar capacity to accommodate the new Z-20F maritime helicopter, while also incorporating sensor and combat-system upgrades.

Design & capabilities

The Type 052D displaces approximately 7,500 tonnes (full load) for the baseline ships, rising to about 7,700 tonnes for the stretched 052DL — figures comparable to a UK Type 45 destroyer. The hull is roughly 156–162 metres long with a beam of 17–18 metres. A CODOG propulsion plant (two QC-280 gas turbines plus two diesel engines) delivers a top speed near 30 knots and an estimated range of 4,500 nautical miles at 15 knots.

The ship’s centrepiece is its 64-cell universal vertical launch system (VLS), arranged in two 32-cell blocks fore and aft. This hot-launch launcher is capable of firing the HHQ-9/HHQ-9B long-range surface-to-air missile, the YJ-18 anti-ship and land-attack cruise missile, the CJ-10 land-attack family (reported), and the CY-5/Yu-8 anti-submarine rocket-torpedo. A 130 mm H/PJ-38 main gun, a 24-cell HHQ-10 short-range missile launcher, and Type 730 or H/PJ-11 (Type 1130) close-in weapons systems complete the layered defence. Two triple 324 mm torpedo tubes for Yu-7 lightweight torpedoes round out the anti-submarine suite (ODIN WEG).

The combat system is built around the Type 346A “Dragon Eye” active electronically scanned array (AESA) radar, presented in four large fixed panels integrated into the superstructure — an architecture comparable to Western Aegis and Sea Viper systems. The AESA provides simultaneous multi-target tracking and fire-control illumination for the HHQ-9 series, with later 052DL hulls reportedly carrying improved sensor output. A hull-mounted sonar is fitted, and some later ships may incorporate a towed-array sonar.

For aviation, the baseline 052D embarks a single Z-9C anti-submarine helicopter; the stretched 052DL adds the roomier Z-20F, which brings greater endurance and payload.

Variants

• Type 052D (baseline): The original configuration with a flight deck sized for the Z-9 and Z-18; roughly the first 20-plus hulls.
• Type 052DL (stretched): Approximately 4–5 metres longer aft, extended flight deck and enlarged hangar for the Z-20F helicopter; incorporates sensor and combat-system refinements (USNI Proceedings). The 052DL makes up a significant portion of the later production batches.

Combat record / operational use

The Type 052D has no combat record. However, the class has been the PLAN’s most-deployed destroyer for power-projection operations outside the First Island Chain. 052Ds have led China’s Gulf of Aden anti-piracy escort task forces since the mid-2010s, conducted regular training and presence patrols in the Western Pacific, and escorted the Liaoning and Shandong carrier groups on far-seas exercises. As the PLAN’s “backbone” surface combatant, the class has accumulated more operational steaming days in blue-water roles than any other Chinese-built warship, though entirely outside actual hostilities (Zona Militar).

Advantages

• Numerically the largest modern destroyer force in Asia, providing the PLAN with mass and surge capacity.
• Universal VLS grants a single launcher access to SAM, anti-ship, land-attack, and ASROC missiles — the same flexibility found in the US Mk 41 and the larger Type 055.
• Modern AESA radar (Type 346A) provides simultaneous multi-target surveillance and fire control, reducing reliance on dedicated illuminators.
• Relatively low unit cost compared to Western equivalents, enabling rapid fleet expansion without a single-point-budget choke.
• Proven in sustained far-seas deployments (Gulf of Aden, Western Pacific) despite the absence of combat.

Drawbacks / limitations

• Untested in a high-threat, multi-spectrum conflict — the only major surface combatant fleet of its size with zero combat exposure.
• A 64-cell VLS magazine is noticeably smaller than the 96 cells on an Arleigh Burke Flight IIA/III or the 112 on a Type 055, limiting the number of engagements a single ship can sustain without replenishment.
• Many performance claims for indigenous missiles and the AESA radar rely on PLAN-released data; independent verification is scarce.
• The ASW sensor suite is modest compared to dedicated ASW frigates such as the UK Type 26, and the baseline Z-9 helicopter is short-legged.

Counterparts

• Arleigh Burke-class (USA)
• Type 45 Daring (UK)

Outlook

Type 052D production is still running at a brisk pace, and the class is expected to remain the quantitative backbone of the PLAN surface fleet well into the 2030s, even as the larger Type 055 takes over flagship duties. Future hulls are likely to incorporate incremental upgrades to the AESA, electronic warfare suite, and perhaps directed-energy weapons or counter-UAS systems, but the fundamental airframe and 64-cell VLS layout appear settled. The class’s real proving ground will be its first contested encounter, which — for a navy that has never fought a fleet action — remains the open question hanging over its otherwise impressive expansion.

Key specifications
