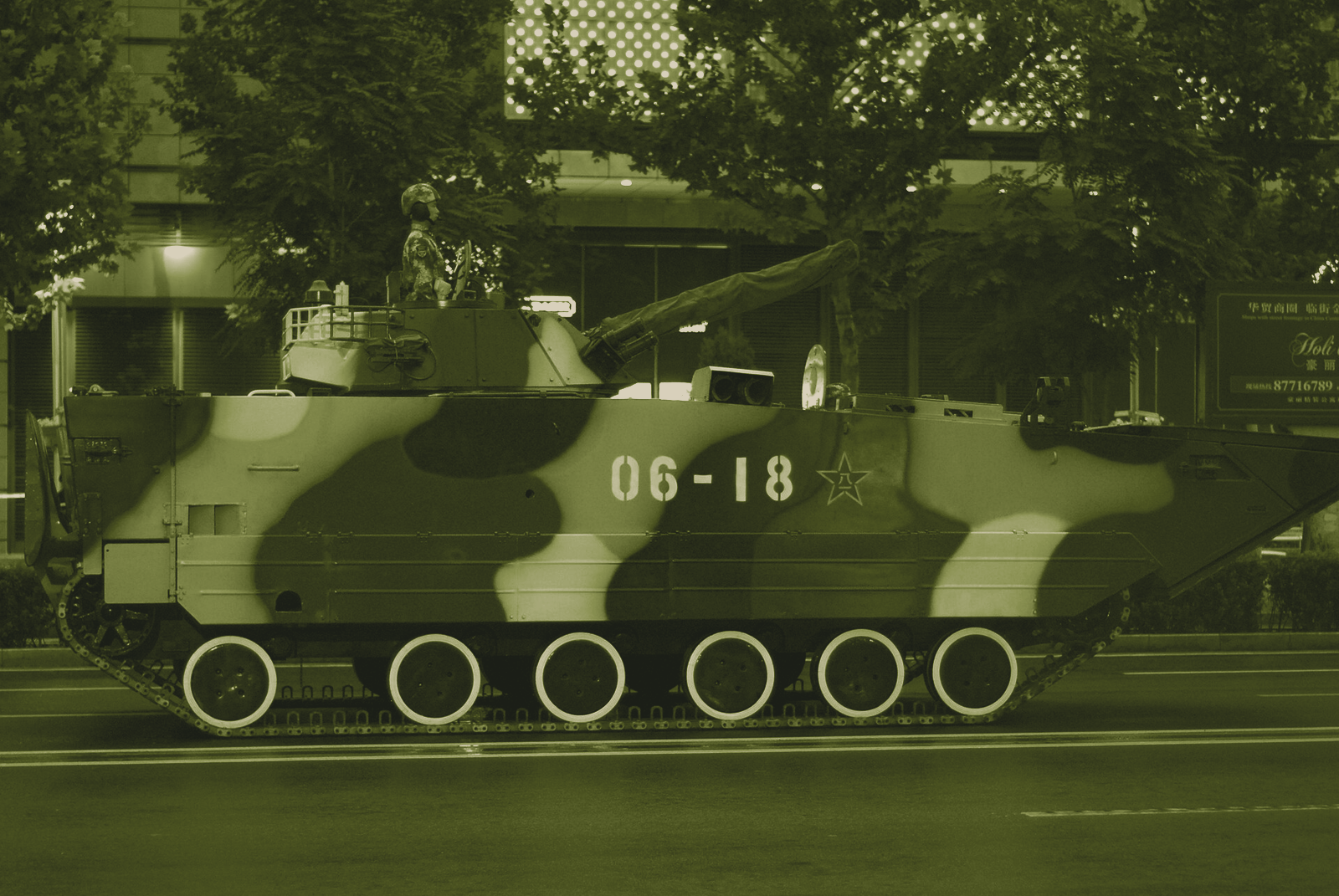

ZBD-05

China’s high-speed amphibious assault family — the ZBD-05 infantry fighting vehicle and the ZTD-05 assault gun — built around a planing hull and water-jet propulsion to deliver PLA Marines and Army amphibious brigades from ship to shore at speeds unmatched by any other operational tracked armored vehicle.

Overview

The ZBD-05 / ZTD-05 (Type 05) is a tracked amphibious combat family developed by NORINCO for the People’s Liberation Army Navy Marine Corps and PLA Army amphibious brigades. It combines a fully amphibious planing hull with water-jets that push water speed to 25–45 km/h — roughly three times faster than any other operational tracked IFV — making it the clearest hardware signature of China’s cross-strait invasion capability. Three variants form the core: the ZBD-05 infantry fighting vehicle (30 mm autocannon, dismounts for 7–10 marines), the ZTD-05 assault gun (105 mm rifled gun), and the ZSD-05 armored personnel carrier. The family entered service in the mid-2000s and remains without a combat record, yet it is consistently at the center of Taiwan-contingency assessments.

Development

NORINCO began fielding the Type 05 family around the mid-2000s, with the assault-gun variant, the ZTD-05, first observed by open sources in 2006. The program’s defining requirement was a truly high-speed overwash-capable amphibian — something that could launch beyond the visual horizon and still hit the beach at a speed that complicated shore defenses. The result was a distinctive planing hull with a large hydraulically operated bow plate, a design dismissed by some analysts as “an amphibious APC on steroids” but validated by the leap from the previous Type 63/89’s ~6 km/h to the Type 05’s routinely demonstrated 25–45 km/h on water, as documented in U.S. DoD’s 2024 China Military Power report and illustrated by Army Technology.

Design & capabilities

The boxy, all-welded steel hull of the Type 05 is designed to plane at speed: the large hydraulically folding bow plate, when closed, acts as additional frontal protection during ground combat. Propulsion is via two rear water-jets for amphibious operation, giving the vehicle the ability to maintain formation with air-cushion landing craft and helicopters, a key metric for over-the-horizon assaults. Land mobility uses conventional tracks with front-mounted drive sprockets and a high-output diesel engine. Maximum road speed is around 65 km/h, while on water the vehicle can sustain 25 km/h in a loaded displacement state and, according to manufacturer claims reported by GlobalSecurity.org, sprint to 45 km/h in “planing mode” — speeds that dramatically reduce the time a landing force spends under fire in the surf zone.

Armament differs by variant. The ZBD-05 IFV mounts a 30 mm ZPT-99 autocannon (a derivative of the Russian 2A72, firing ~330 rounds per minute) in a two-man turret, flanked by a roof-mounted HJ-73C wire-guided anti-tank missile and an AGS-17 automatic grenade launcher. The ZTD-05 replaces the IFV turret with a large three-man turret housing a 105 mm ZPL-98A rifled gun — capable of firing the same ammunition as the PLA’s Type 05 amphibious tank and firing a gun-launched anti-tank guided missile through the tube — giving it the direct-fire punch to reduce beachfront fortifications and engage armored vehicles at range. Armor protection is optimized for weight, providing all-round resistance against 7.62 mm ball ammunition and frontal resistance against 12.7 mm rounds; the bow plate adds a modest ballistic shield when stowed, but the design makes no claim to withstand medium-caliber cannon fire, as detailed by Army-Guide. Nuclear, biological, and chemical protection is fitted, but no hard-kill active protection system has been observed.

Variants

• ZBD-05 – Amphibious IFV; 30 mm autocannon, HJ-73C ATGM, AGS-17 grenade launcher, carries a reinforced squad of 7–10 marines.
• ZTD-05 (ZLT-05) – Amphibious assault gun; 105 mm rifled gun with gun-launched ATGM, 12.7 mm anti-aircraft machine gun, no dismount compartment.
• ZSD-05 – Amphibious APC; small-arms RWS, maximal troop capacity.
• VN16 / VN18 – Export designations for the ZTD-05 and ZBD-05 respectively; no confirmed foreign sales.

Combat record / operational use

The Type 05 family has no combat history. Its entire operational career revolves around large-scale amphibious exercises, where PLANMC and PLA Army brigades practice ship-to-shore maneuvers with the vehicle as the armored fist. Open-source analysts and planners assessing a potential cross-Taiwan Strait scenario consistently highlight the Type 05’s role; a 2024 Insikt Group report from Recorded Future titled “Speeding Toward Taiwan” describes the ZBD-05 and ZTD-05 as the “primary armored assault echelon” for any landing on Taiwan’s western beaches, noting that the vehicles would launch from Type 071 amphibious transport docks and Type 075 landing helicopter docks well beyond the horizon. The U.S. Department of Defense’s 2024 annual report similarly points to the massing of these platforms as a key indicator of Chinese amphibious readiness, though the equipment remains untested against a contested landing.

Advantages

• World-leading amphibious speed: 25–45 km/h on water via planing hull and water-jets, shrinking the vulnerable surf-zone window.
• Over-the-horizon launch capability, compatible with PLA Navy amphibious flotillas.
• ZTD-05 variant delivers 105 mm direct-fire support, on-par with early-generation main battle tanks, for engaged beachheads.
• Large infantry-carrying capacity (ZBD-05) enables a reinforced squad to disembark immediately on landing.
• High operational mobility ensures a rapid build-up ashore once beaches are secured.

Drawbacks / limitations

• Light armor — all-round protection against only 7.62 mm and limited protection against 12.7 mm — leaves it acutely vulnerable to even medium-caliber cannon, anti-tank guided weapons, and drones.
• No combat record; all performance data derives from exercises and manufacturer-stated figures, leaving survivability under fire uncertain.
• Water-jet planing performance presumably degrades with minor hull damage or fouling from beach obstacles.
• No hard-kill active protection system has been observed, making it a soft target against modern anti-armor threats.
• Export efforts have not resulted in confirmed sales, limiting economies of scale and operational feedback.

Counterparts

• M2 Bradley (USA)
• BMP-3 (Russia)

Outlook

The Type 05 family remains at the center of China’s amphibious modernization, with mass production continuing and no announced replacement. Its design is thoroughly optimized for a single scenario — a cross-strait landing — and it will remain the PLA’s principal ship-to-shore armored vehicle so long as that contingency drives procurement. However, the proliferation of naval mines, anti-ship missiles, armed drones, and precision artillery along contested coastlines raises questions about the platform’s survivability against any peer defender. Beijing’s calculus regarding the vehicle’s combat debut will thus remain a closely watched indicator of its intentions.

Key specifications

Sources

1. Army Technology — “ZBD-05 Amphibious Infantry Fighting Vehicle.” https://www.army-technology.com/projects/zbd-05-amphibious-infantry-fighting-vehicle/
2. Wikipedia — “Type 05 amphibious fighting vehicle.” https://en.wikipedia.org/wiki/Type_05_amphibious_fighting_vehicle
3. GlobalSecurity.org — “ZBD-2000 Type 05 Amphibious Fighting Vehicle.” https://www.globalsecurity.org/military/world/china/zbd-2000.htm
4. Army-Guide — “ZBD2000/ZBD-05/VN18.” http://www.army-guide.com/eng/product4080.html
5. The National Interest — “China’s ZTD-05 Amphibious Assault Vehicle Is Meant to Do One Thing.” https://nationalinterest.org/blog/buzz/chinas-ztd-05-amphibious-assault-vehicle-is-meant-to-do-one-thing/
6. Recorded Future (Insikt Group) — “Speeding Toward Taiwan: China’s Amphibious Armored Vehicles.” https://assets.recordedfuture.com/insikt-report-pdfs/2024/ta-2024-0815.pdf
7. U.S. Department of Defense — “Military and Security Developments Involving the People’s Republic of China 2024.” https://media.defense.gov/2024/Dec/18/2003615520/-1/-1/0/MILITARY-AND-SECURITY-DEVELOPMENTS-INVOLVING-THE-PEOPLES-REPUBLIC-OF-CHINA-2024.PDF
