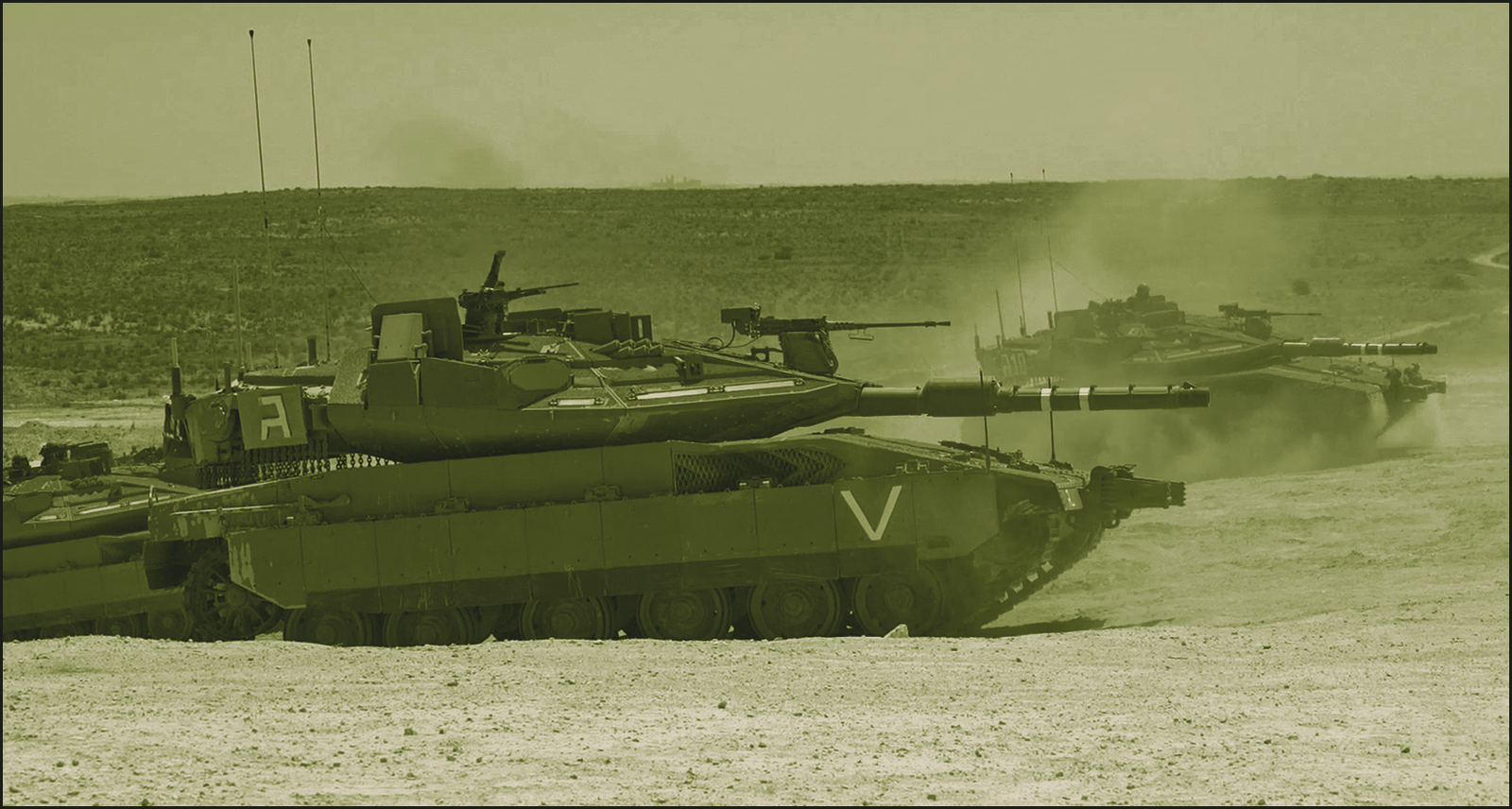

Merkava Mk 4

Israel's survivability-first main battle tank — engine-forward, rear-crew-exit architecture with the combat-proven Trophy active protection system, fielded since 2003 and continuously upgraded into the AI-enabled Barak standard.

Overview

The Merkava Mk 4 (Hebrew "Merkava" = chariot) is the fourth-generation main battle tank developed by Israel's Directorate of Merkava and Armored Vehicles (Mantak) in partnership with the IDF Ground Forces and Israeli defense industry. It is built around a singular design philosophy: crew survivability above all else. The front-mounted engine acts as an additional armor block between incoming fire and the fighting compartment, while a rear hull door allows the four-man crew to exit under armor or carry infantry and casualties. The Mk 4 entered service in 2003 and has undergone successive upgrades — most consequentially the Mk 4M "Windbreaker" with Rafael's Trophy active protection system from 2009, and the Mk 4 "Barak" from 2023, which layers AI-assisted target acquisition, 360° day/night cameras, helmet-mounted see-through-armor displays, and an electronic-warfare suite onto the same hull. No Merkava has ever been exported as a complete tank, though used Mk 2 and Mk 3 export talks surfaced in 2023 with Cyprus and, by some reports, Morocco.

Development

Israel initiated the Merkava program after the 1973 Yom Kippur War exposed the vulnerability of relying on foreign tank supply, unveiling the first prototype in 1977 and fielding the Mk 1 with the 7th Armoured Brigade in 1979, according to Army Recognition. Each successive generation — Mk 2 (1983), Mk 3 (1989 with a 120 mm smoothbore gun), and Mk 4 (2003) — deepened the same survivability-first architecture: engine forward, crew compartment aft, and modular replaceable armor. The 2006 Lebanon War proved a traumatic inflection point: at least 40 Merkavas across marks were damaged and five or six destroyed by anti-tank guided missiles, mines, and improvised devices, spurring the rapid integration of the Trophy hard-kill active protection system. The Mk 4M Windbreaker, fielded from 2009 with the first full brigade operational by 2011, married the Mk 4 hull to Rafael's Trophy APS. A mid-life bridge upgrade designated Mk 4M 400 followed. The most ambitious evolution, the Barak ("Lightning"), was developed over five years by Mantak with Elbit, Rafael, and IAI/Elta, and handed to the 401st Armoured Brigade in September 2023, as detailed by the IDF and Algemeiner. In August 2025, Israel approved a ~$1.5 billion (NIS 5 billion) production acceleration to offset wartime attrition and expand the Barak-standard fleet alongside Namer and Eitan armored personnel carriers, as reported by Army Technology.

Design & capabilities

The Mk 4's defining design choice is its front-mounted General Dynamics GD883 (MTU 883) V12 water-cooled diesel, producing 1,500 hp (1,119 kW), which doubles as a protective mass ahead of the crew compartment. The rear access door — unique among Western main battle tanks — enables protected crew egress, resupply, and the carriage of infantry or casualties, making the tank adaptable to low-intensity urban warfare. Armor is classified modular sloped composite; exact composition and thickness are not publicly disclosed. The main armament is a 120 mm smoothbore gun (IMI MG251-LR, widely reported as MG253) fed by an electric drum holding 10 ready rounds out of 48 carried, capable of firing APFSDS, HEAT, and the LAHAT gun-launched anti-tank guided missile, per Wikipedia. Secondary weapons include one 12.7 mm machine gun, three 7.62 mm machine guns, a 60 mm internal mortar, and 12 smoke-grenade launchers.

The Mk 4M and Barak integrate Rafael's Trophy active protection system, which uses radar to detect incoming projectiles and fires a blast to defeat them at stand-off range. Trophy has been combat-proven since 2011, as documented by The War Zone, which published footage of Trophy intercepting RPGs and Kornet-class ATGMs during the 2023 Gaza campaign. The Barak upgrade, described by the IDF, adds an AI-powered mission computer for autonomous target acquisition, Elbit's IronVision helmet-mounted display providing 360° see-through-armor vision, and an electronic-warfare suite. The IISS assessed that from November 2023 in Gaza, Mk 4s "were struck many times from close ranges but suffered few losses," withstanding hits that would previously have destroyed a tank.

Variants

• Mk 4 baseline (2003): Initial production configuration with 120 mm smoothbore and modular composite armor.
• Mk 4M Windbreaker (2009): Integrates Rafael Trophy APS; first full brigade operational by 2011.
• Mk 4M 400: Mid-life bridge upgrade with enhanced systems.
• Mk 4 Barak (2023): Upgraded Trophy, 360° day/night cameras, IronVision helmet display, AI mission computer, and EW suite. Described by the IDF as a Mk 4 upgrade; referred to by some outlets as the "Merkava Mk 5."
• Derivatives: Merkava LIC urban-warfare kits; Tagash armored vehicle-launched bridge (AVLB), operated by the Philippine Army.

Combat record / operational use

The Merkava line has fought in every Israeli ground campaign since the 1982 Lebanon War. In the 2006 Lebanon War, at least 40 Merkavas across marks were damaged and five to six destroyed by sophisticated anti-armor ambushes — the trauma that catalyzed Trophy's accelerated fielding. The Mk 4M with Trophy saw its first intercepts from 2011 onward along the Gaza perimeter.

On 7 October 2023, Hamas overran unprepared tank positions near the Gaza border. The IISS noted Hamas claimed a Mk 4 destroyed by a loitering munition, and at least one tank was confirmed killed by a commercial quadcopter dropping a shaped charge through an open hatch — prompting the improvised slat-armor "cope cage" retrofit seen on Israeli and other tanks thereafter. An IDF investigation found Hamas had spent years mapping tank weak points, including an externally accessible engine cut-off. Through the 2023–25 Gaza campaign, Israel deployed roughly 2,200 MBTs and 790 APCs, collectively logging a claimed one million kilometers of operational running, according to Army Technology. Loss claims diverge sharply: Maariv reported that nearly half the Merkava force had been lost and Hamas's Qassam Brigades claimed half of all armored vehicles destroyed — figures the IDF does not confirm and which the IISS assessment of "few losses" relative to attack volume contradicts, as catalogued by Wikipedia. In Lebanon, the 36th Division's armor joined the October 2024 ground incursion; Hezbollah claimed three Merkavas destroyed by rockets on 2 October 2024 and a Mk 4 killed by an FPV drone on 3 May 2026, though neither claim is independently verified.

Advantages

• Survivability-first layout: Front engine as crew shield, rear hatch for protected exit and infantry carriage — unique among Western MBTs.
• Combat-proven hard-kill APS: Trophy on the Mk 4M has intercepted RPGs and Kornet-class ATGMs in combat since 2011, with video-documented Gaza intercepts.
• Resilience under fire: IISS assessed that in the dense Gaza environment, Mk 4s absorbed multiple close-range strikes that would have previously destroyed a tank, suffering few total losses.
• Deep upgrade path: The Barak adds AI-assisted target acquisition, IronVision see-through armor, and EW processing on the same hull, fielded to a frontline brigade within five years of development.
• Sustained operational endurance: The armored fleet logged a claimed one million kilometers of wartime running in Gaza, supported by an emergency powertrain-parts program.

Drawbacks / limitations

• Top-attack vulnerability: A Mk 4 was destroyed by a quadcopter-dropped shaped charge on 7 October 2023, and Hamas claimed a loitering-munition kill — exposing a weakness that drove improvised cope-cage retrofits.
• Unverified high-loss claims: Hamas and some Israeli media assert catastrophic attrition; the IDF publishes no loss ledger, and visual confirmation stood at ≥24 destroyed or damaged Merkavas by December 2023.
• Extreme weight: At 65 tonnes with 1,400 liters of fuel, it is among the heaviest MBTs in service, straining bridges, transporters, and powertrains — the IDF outsourced armor repair for the first time in October 2024 and reported tank shortages a month later.
• Exploitable when static: The IDF's own investigation concluded Hamas had mapped tank weak points through years of peacetime intelligence collection, including externally accessible engine cut-offs.
• Zero export base: Production runs solely on Israeli orders; 2023 surplus-sale talks with Cyprus and, reportedly, Morocco stalled amid the war and arms-export halts.

Counterparts

• M1A2 Abrams (USA)
• T-90M Proryv (Russia)

Outlook

Production is expanding, not winding down. The August 2025 NIS 5 billion acceleration funds additional Barak-standard Mk 4s alongside Namer and Eitan carriers to rebuild and grow the armored corps, framed by Defense Minister Katz as preserving the IDF's qualitative edge. The Barak's AI-assisted sensors and EW suite represent the template for counter-FPV adaptation, but the 2026 Hezbollah FPV claim and the cope-cage era demonstrate that the top-attack threat remains unresolved. Export prospects remain stalled: Cyprus reportedly drifted toward US M1 Abrams amid Israeli wartime export halts and spare-parts concerns.

Key specifications
