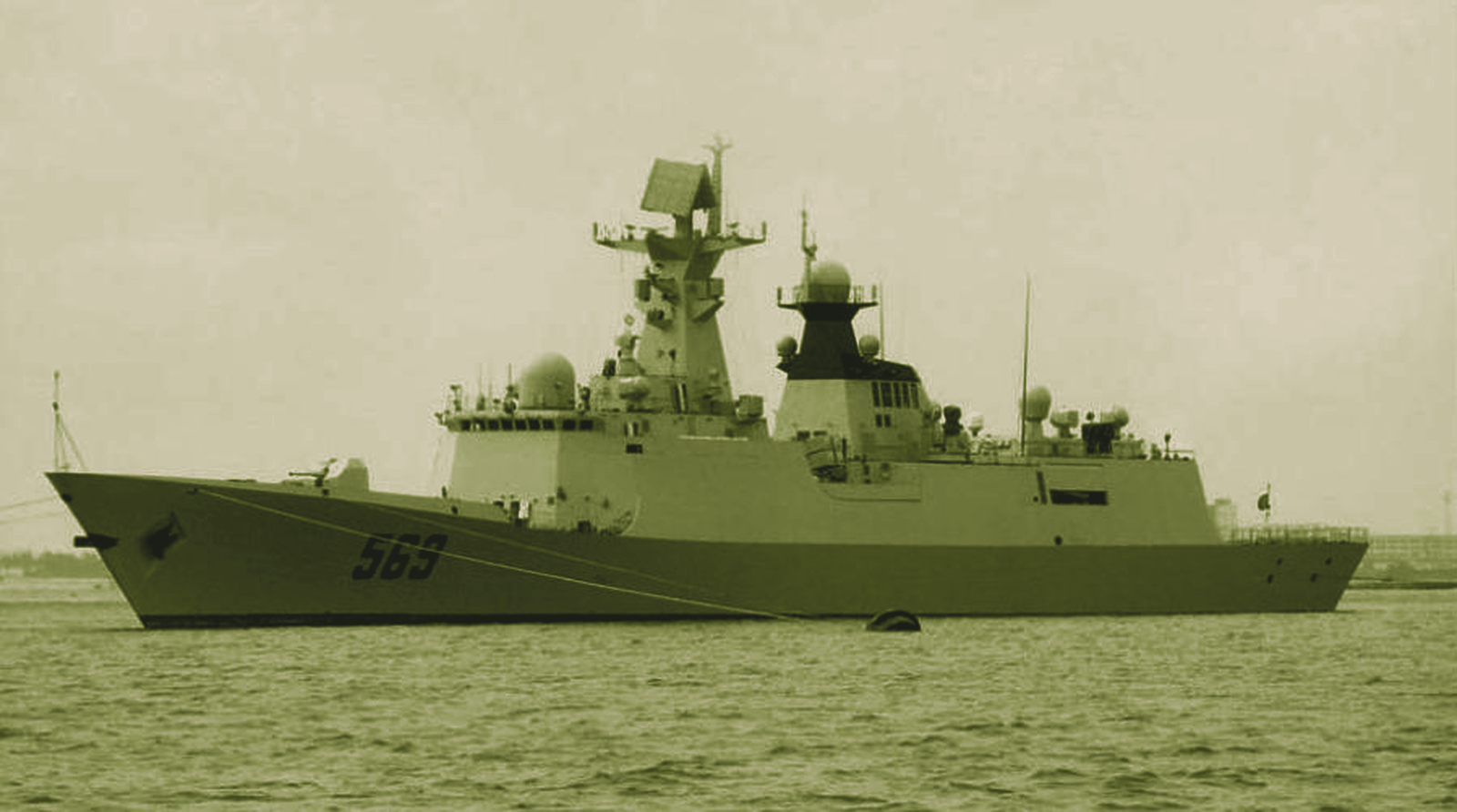

Type 054A

China's most-produced and most-deployed modern surface combatant — a 4,000-tonne multi-role frigate that anchors the People's Liberation Army Navy's escort, anti-piracy, and blue-water presence missions with a 32-cell vertical launch system and a global operational record stretching from the Gulf of Aden to the Western Pacific.

Overview

The Type 054A, designated Jiangkai II-class by Western navies, is a guided-missile frigate that forms the numerical backbone of the People's Liberation Army Navy (PLAN) surface fleet. First commissioned in 2008, the class has been built in serial production for nearly two decades, with over 40 hulls completed for the PLAN and for export to the Pakistan Navy. The ship combines a 32-cell vertical launch system (VLS) for area air defence and anti-submarine rockets with eight YJ-83 anti-ship missiles, a 76 mm main gun, and two close-in weapon systems, all in a hull displacing approximately 4,000–4,500 tonnes at full load. It is, by a wide margin, the PLAN's most frequently deployed large surface combatant, having sustained a continuous anti-piracy presence in the Gulf of Aden since 2009 while also participating in non-combatant evacuations, far-seas training, and carrier escort duties.

Development

The Type 054A emerged from the earlier Type 054 (Jiangkai I) design, which introduced stealth shaping and a modern CODAD propulsion arrangement to the PLAN but retained a point-defence-only missile armament. The definitive 054A variant added a vertically launched medium-range surface-to-air missile system — the HHQ-16, housed in a 32-cell H/AKJ-16 VLS — transforming the platform into a true area-air-defence escort. Lead ship Xuzhou (530) entered service in January 2008, and serial production proceeded rapidly across two yards, Hudong-Zhonghua in Shanghai and Huangpu Shipyard in Guangzhou, as detailed by Naval Technology. The class represents the first Chinese frigate series built at destroyer-like tempo, with roughly 30 hulls delivered to the PLAN by 2019 and additional follow-on units continuing into the mid-2020s alongside the larger Type 054B successor. China SignPost has characterised the 054/054A series as China's "most produced and deployed" large modern surface combatant, a distinction that reflects both industrial capacity and an operational doctrine that pushes frigates into sustained forward presence.

Design & capabilities

The Type 054A is a conventionally laid-out monohull frigate with a full-load displacement of roughly 4,000–4,500 tonnes, a length of 134 metres, and a beam of 16 metres, according to Naval Technology. Propulsion is a CODAD arrangement of four SEMT Pielstick (MAN) 16 PA6V-280 STC diesels delivering approximately 18,880 kW to two shafts, yielding a maximum speed of 27–30 knots and a range in excess of 8,000 nautical miles. The hull incorporates radar-cross-section reduction measures, including sloped superstructure surfaces and enclosed mooring gear.

The ship's principal armament centres on a 32-cell H/AKJ-16 vertical launch system capable of firing the HHQ-16 (HQ-16) semi-active radar-homing surface-to-air missile out to roughly 50 km, as well as the Yu-8 anti-submarine rocket. Anti-surface striking power is provided by two quadruple launchers for eight YJ-83 sea-skimming anti-ship cruise missiles with an estimated range of 180–250 km. A single H/PJ-26 76 mm dual-purpose gun (replacing the 100 mm mount on the earliest units) and two Type 730 30 mm close-in weapon systems complete the gun and point-defence fit. Anti-submarine warfare is supported by Yu-7 lightweight torpedoes, Type 87 ASW rocket launchers, and hull-mounted sonar, with a towed sonar fitted on ASW-optimised hulls.

Sensors include the Type 382 "Sea Eagle" three-dimensional air-search radar — a mechanically scanned set broadly analogous to the Russian Fregat-M2EM — plus Type 344 and Type 345 fire-control radars for the main gun and CIWS respectively. The combat management system integrates these sensors with the VLS and anti-ship missile fire-control channels. A single Z-9C or Ka-28 helicopter is embarked for anti-submarine and surface-search missions. The US Navy's Office of Naval Intelligence, in its annual Report to Congress, identifies the Type 054A as one of the classes underpinning the PLAN's rise to the world's largest navy by battle-force count.

Variants

The export variant, designated Type 054A/P, equips the Pakistan Navy with four ships — lead ship PNS Tughril commissioned in 2021, with all four delivered by 2022. The Type 054A/P configuration is broadly similar to PLAN units, with the HHQ-16 VLS and YJ-83 anti-ship missiles, though sensor and combat-system details may differ in export form. Within the PLAN fleet, later-production 054A hulls incorporate incremental improvements including an upgraded towed sonar and minor sensor refinements. A parallel new-generation frigate, the larger Type 054B (Jiangkai III-class), entered service in January 2025 with an integrated mast housing dual rotating AESA radars and represents a generational sensor leap over the 054A, as reported by Naval News.

Combat record / operational use

The Type 054A has no major combat record, but it is the PLAN's most operationally proven modern surface combatant by deployment tempo. Since 2009, Type 054A frigates have formed the core of Chinese naval escort task groups rotating through the Gulf of Aden for anti-piracy operations — the PLAN's longest continuous out-of-area naval commitment, described by China SignPost as the "backbone" of the mission. The ships have also conducted non-combatant evacuation operations, including the 2011 Libya evacuation, and have made regular port calls across the Indian Ocean, Southeast Asia, and the Western Pacific. More recently, 054A hulls have participated in carrier escort operations alongside the Liaoning and Shandong carrier strike groups. The Pakistan Navy's Type 054A/P frigates, the service's most capable surface combatants, have undertaken regional patrol and exercise duties since delivery. This extensive operational tempo — sustained for over 15 years — gives the Type 054A a level of real-world sea-going experience unmatched by any other Chinese surface combatant class, a point reinforced by the Global Times in reporting on continued 054A deployments.

Advantages

• High operational availability and proven seakeeping, demonstrated by continuous Gulf of Aden rotations since 2009.
• Credible layered self-defence: 32-cell VLS with HHQ-16 (~50 km) plus two CIWS mounts provide area and point air defence uncommon in frigates of this displacement.
• Potent anti-surface punch: eight YJ-83 sea-skimming missiles offer a credible over-the-horizon strike capability.
• Long range (>8,000 nm) and reliable CODAD propulsion support sustained blue-water deployments without gas-turbine complexity.
• Serial production at scale has produced over 40 hulls, yielding a frigate fleet larger than most nations' entire navies.
• Export success to Pakistan (Type 054A/P) demonstrates design maturity and operational credibility.

Drawbacks / limitations

• The Type 382 mechanically scanned radar is a generation behind the AESA sets fielded on the Type 054B, Type 052D and Type 055; it limits simultaneous track and engagement capacity in high-density threat environments.
• The HHQ-16, while adequate, is outranged by contemporary Western and Russian medium-range SAMs; the VLS uses a cold-launch revolver-type mechanism rather than the universal hot-launch cell Fielding on larger PLAN combatants, restricting missile commonality with the wider fleet.
• Submarine-hunting capability, while functional, is less capable than that of dedicated ASW frigates such as the FREMM or Type 26, particularly on non-towed-sonar hulls.
• No land-attack cruise missile capability; the class is restricted to anti-ship and anti-air/ASW roles.

Counterparts

• FREMM (Europe)
• Admiral Gorshkov (Russia)

Outlook

The Type 054A remains in serial production even as the larger Type 054B enters service, suggesting the PLAN intends to sustain frigate numbers while the new class matures. The 054A will likely remain the fleet's workhorse escort into the 2030s, gradually shifting to lower-threat theatres and patrol duties as more capable destroyers and the 054B take on high-end escort roles. The export pipeline, demonstrated by the Pakistan programme, may produce additional customers in China's traditional arms market. No operational retirement of the class has been signalled.

Key specifications

Sources

1. Naval Technology — Type 054A (Jiangkai-II) Class Frigate. https://www.naval-technology.com/uncategorized/type-054a-jiangkai-ii-class-frigate/
2. China SignPost — The Type 054/054A Frigate Series. https://www.chinasignpost.com/2015/08/02/the-type-054054a-frigate-series-chinas-most-produced-and-deployed-large-modern-surface-combatant/
3. Global Times — New variant of Type 054A frigate in service with PLA Navy. https://www.globaltimes.cn/page/202601/1352980.shtml
4. Naval News — Chinese Navy Commissions First Type 054B Next Gen Frigate. https://www.navalnews.com/naval-news/2025/01/chinese-navy-commissions-first-type-054b-next-gen-frigate/
5. USNI News — Report to Congress on Chinese Naval Modernization. https://news.usni.org/2025/05/01/report-to-congress-on-chinese-naval-modernization-21
